Press Brake Tooling: Perfect Bends Without Surface Marks

In today’s competitive sheet metal fabrication industry, surface quality is just as important as dimensional accuracy. Even a perfectly bent workpiece can be rejected if visible die marks or scratches appear on the finished surface. This is why more manufacturers are turning to scratch-free press brake tooling to improve product quality and reduce production costs.

At IVILA, we understand that premium sheet metal products require more than accurate bending—they require flawless surface finishes. Our advanced press brake tooling is specifically engineered to eliminate bending marks while maintaining outstanding precision, durability, and productivity.

Why Do Traditional Press Brake Tools Leave Marks?

Many manufacturers have experienced this situation: a batch of stainless steel panels is bent accurately, yet visible indentation marks remain on the surface. The parts require additional polishing or, even worse, are rejected by customers.

Surface marks are typically caused by several factors:

• Rough die surfaces
• Poor radius design
• Uneven pressure distribution
• Worn tooling edges
• Improper material support during bending

These issues increase labor costs, reduce production efficiency, and negatively impact customer satisfaction.

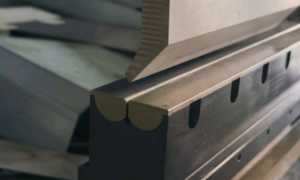

IVILA Scratch-Free Press Brake Tooling Solution

IVILA has developed a new generation of press brake tooling specifically designed for high-quality surface protection.

Manufactured from premium alloy steel and finished with precision grinding technology, each tool features an ultra-smooth mirror-like surface that significantly reduces friction during bending. Optimized pressure distribution ensures that the material is formed evenly without creating unwanted indentation marks.

In production testing, IVILA scratch-free tooling achieved a surface qualification rate of up to 99.8% when processing stainless steel, aluminum, and decorative sheet metal.

Precision Radius Design Makes the Difference

One of the most important factors in scratch-free bending is the die radius.

After extensive engineering and testing, IVILA optimized the radius geometry to provide consistent bending performance while minimizing material stress.

Key specifications include:

• Radius tolerance within ±0.02 mm
• Surface roughness of Ra ≤ 0.4 μm
• Mirror-polished working surfaces
• Optimized contact geometry for reduced friction

This precision allows sheet metal to flow smoothly during bending rather than sliding aggressively against the tooling surface.

Real Manufacturing Results

A manufacturer producing premium elevator panels required flawless 304 stainless steel components with absolutely no visible bending marks.

Previously, every bent panel required manual polishing after forming, increasing labor costs and reducing production efficiency.

After switching to IVILA press brake tooling, the company achieved:

• 30% reduction in finishing time
• Product qualification improved from 85% to 98%
• Significant reduction in labor costs
• Faster production cycles

The investment quickly paid for itself through higher productivity and improved customer satisfaction.

Premium Materials for Long Tool Life

Surface quality depends not only on tool design but also on tool material.

IVILA manufactures its press brake tooling using imported high-strength alloy steel combined with advanced vacuum heat treatment and deep cryogenic processing.

The result is:

• Hardness of HRC 58–62
• Excellent wear resistance
• Stable dimensional accuracy
• Over 500,000 bending cycles under normal production conditions

Compared with conventional tooling, IVILA tools provide significantly longer service life while maintaining consistent bending quality.

Solutions for Different Material Thicknesses

Different materials require different tooling geometries.

IVILA offers complete press brake tooling solutions for various applications:

Thin Sheets (Below 1 mm)

Small-radius tooling provides excellent precision while protecting delicate surfaces.

Medium Thickness (2–6 mm)

Composite radius dies distribute pressure evenly, preventing deformation and surface marking.

Heavy Plate (Above 6 mm)

Reinforced tooling structures withstand extremely high bending forces while maintaining excellent dimensional stability.

This comprehensive product range allows manufacturers to achieve optimal results regardless of material thickness.

Proper Tool Maintenance Maximizes Performance

Even the highest-quality press brake tooling requires regular maintenance.

IVILA recommends:

• Clean tooling surfaces every shift using approved cleaning agents.
• Inspect tooling after every 5,000 bending cycles.
• Apply anti-rust protection before storage.
• Store tooling in a dry environment.
• Replace or regrind worn tooling before excessive wear affects product quality.

Proper maintenance can increase tooling service life by more than 40% while maintaining scratch-free performance.

Lower Operating Costs Through Better Tooling

Many manufacturers focus only on tooling purchase price while overlooking long-term production costs.

One cookware manufacturer previously scrapped products worth thousands of dollars every month due to visible bending marks.

After upgrading to IVILA press brake tooling, the company achieved:

• Scrap rate reduced to just 0.3%
• More premium customer orders
• Tooling investment recovered within three months
• Annual savings exceeding tens of thousands of dollars through reduced rework and scrap

High-quality tooling delivers value far beyond its initial purchase cost.

Why Manufacturers Choose IVILA

With over 15 years of experience in press brake tooling development, IVILA continues to provide reliable bending solutions for industries including:

• Aerospace
• Medical equipment
• Home appliances
• Elevator manufacturing
• Precision sheet metal fabrication
• Industrial equipment

Every IVILA tool undergoes strict quality inspection to ensure consistent accuracy, durability, and performance.

How to Choose the Right Press Brake Tooling

Before purchasing new tooling, manufacturers should evaluate:

• Material certification
• Surface finish quality
• Radius accuracy
• Heat treatment process
• Wear resistance
• Technical support
• Sample testing capability

IVILA offers free sample testing and professional technical consultation to help customers select the most suitable press brake tooling for their applications.

The Future of Scratch-Free Bending

As customer expectations continue to rise, scratch-free bending is becoming the industry standard rather than a premium option.

IVILA is investing in next-generation intelligent press brake tooling featuring smart identification, automatic parameter matching, and predictive wear monitoring. These innovations will further improve bending accuracy, reduce downtime, and help manufacturers achieve higher productivity with consistently perfect results.

Conclusion

Surface defects should never limit the quality of your products. Choosing the right press brake tooling not only protects valuable materials but also improves efficiency, reduces scrap, and strengthens your competitive advantage.

Whether you’re processing stainless steel, aluminum, or decorative sheet metal, IVILA delivers precision-engineered press brake tooling designed for scratch-free bending, exceptional durability, and long-term production success.
