Sheet metal bending machines to meet the highest demands

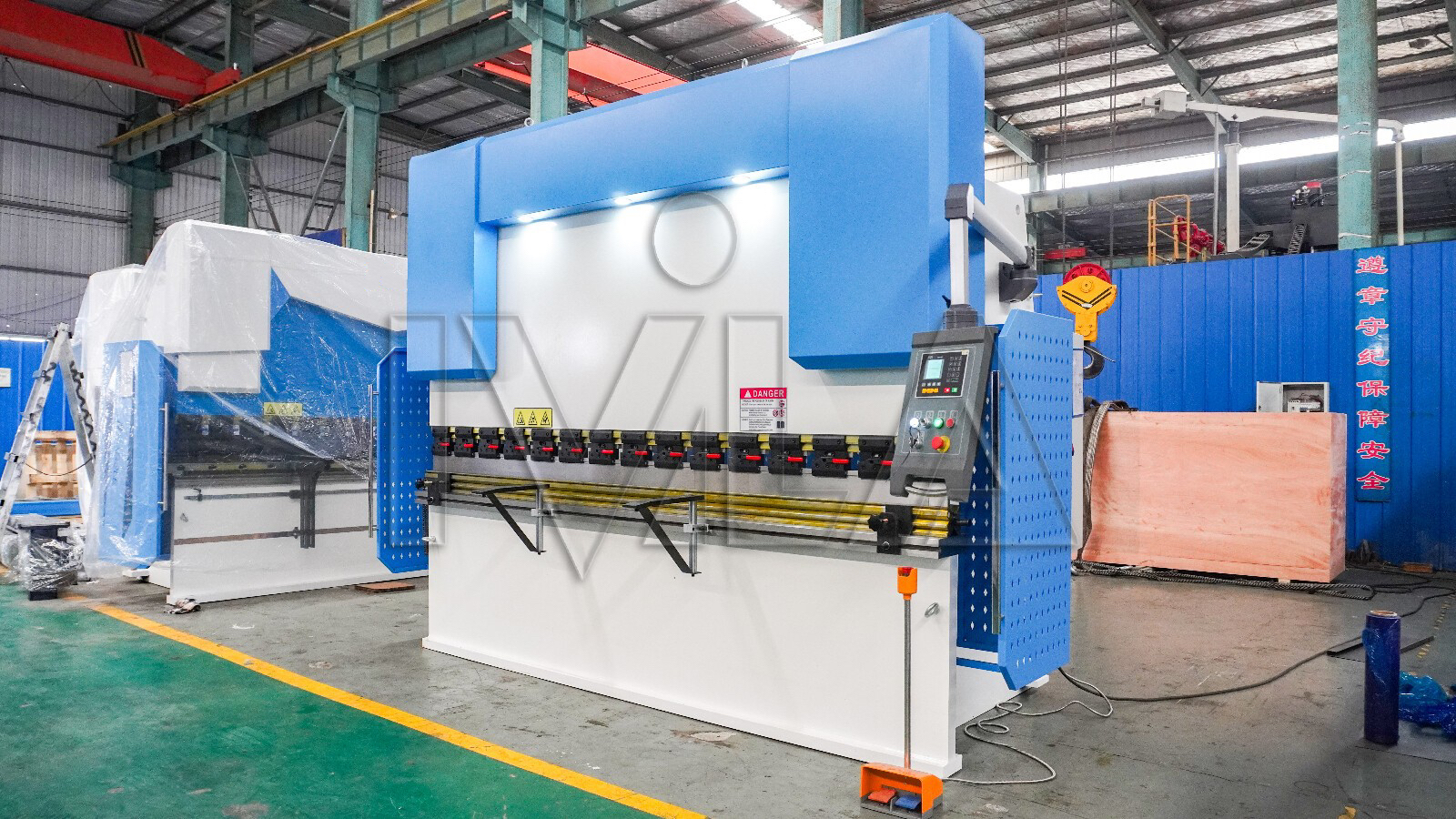

China NC Press Brake WC67Y

IVILA Intelligent Display System Features:

  • High-definition LCD screen for clear visualization
  • Dual-language interface: Chinese and English
  • User-friendly programmable parameter display
  • Smart X and Y axis positioning with manual adjustment capability
  • Built-in dwell time and unloading delay functions
  • Convenient one-touch parameter backup and restore for data security
New generation design
Produced with advanced
technology
Excellent Bending precision
High performance

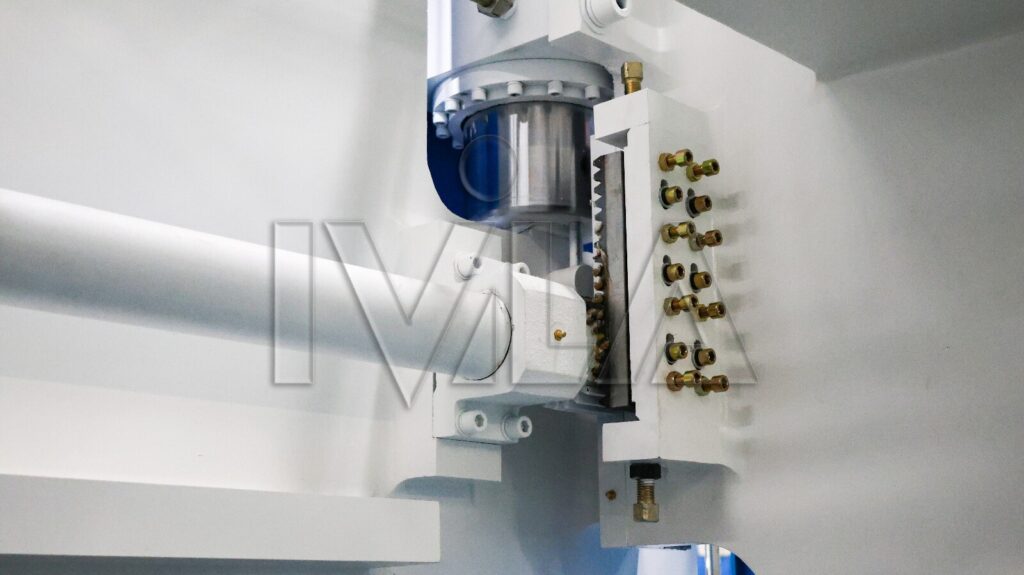

Torsion-Bar Structure

  • High-strength torsion-bar structure with excellent elasticity and adjustable design
  • Shaft body processed through traditional forging and tempering techniques
  • Premium-quality raw materials ensure reliable machine performance
  • Precision welding and seamless splicing for enhanced stability and durability
  • Entire machine undergoes annealing treatment for improved structural strength
  • Finished by floor-type boring and milling machine for high precision machining
Get A Quote

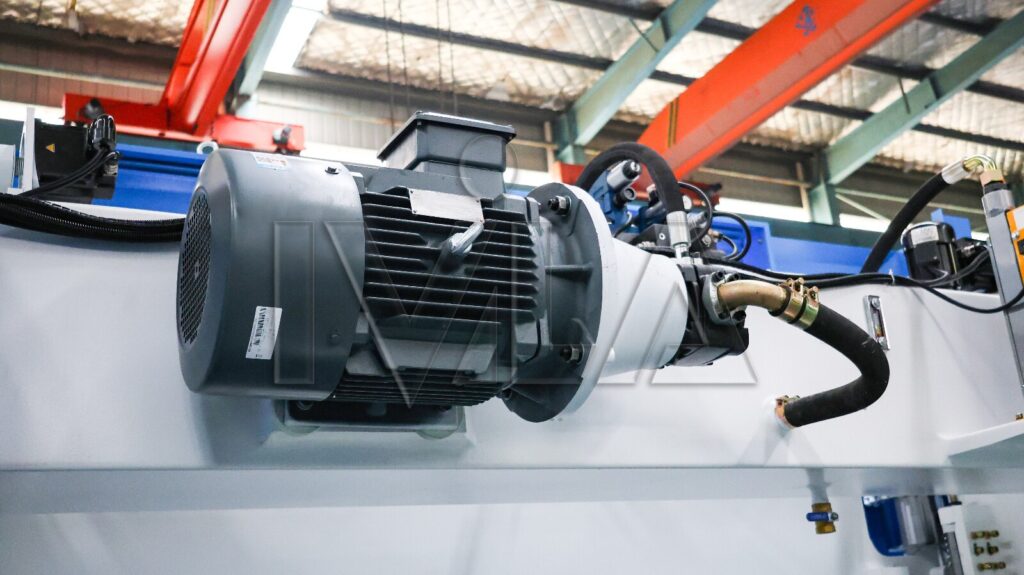

Oil Pump & Motor

  • Equipped with world-renowned Sunny oil pump and Siemens motor
  • Ensures low-noise operation for a better working environment
  • Provides stable performance and extended service life
Get A Quote

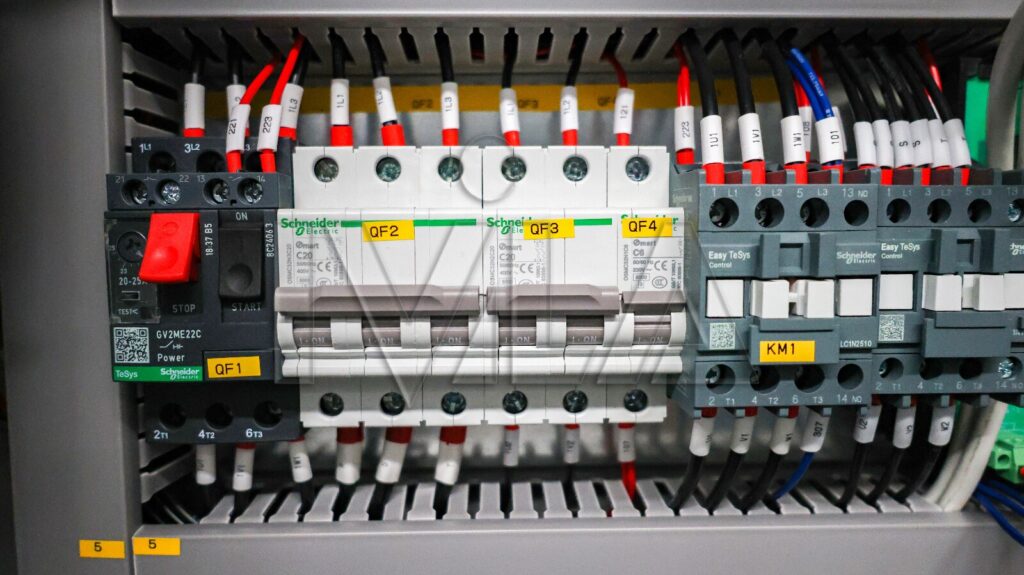

SCHNEIDER Electrics

  • Electrical components are imported or sourced from Sino-foreign joint ventures, meeting international standards
  • Reliable and safe with long service life
  • Excellent anti-interference performance
  • Electrical cabinet equipped with a radiation suppression unit for added protection
Get A Quote

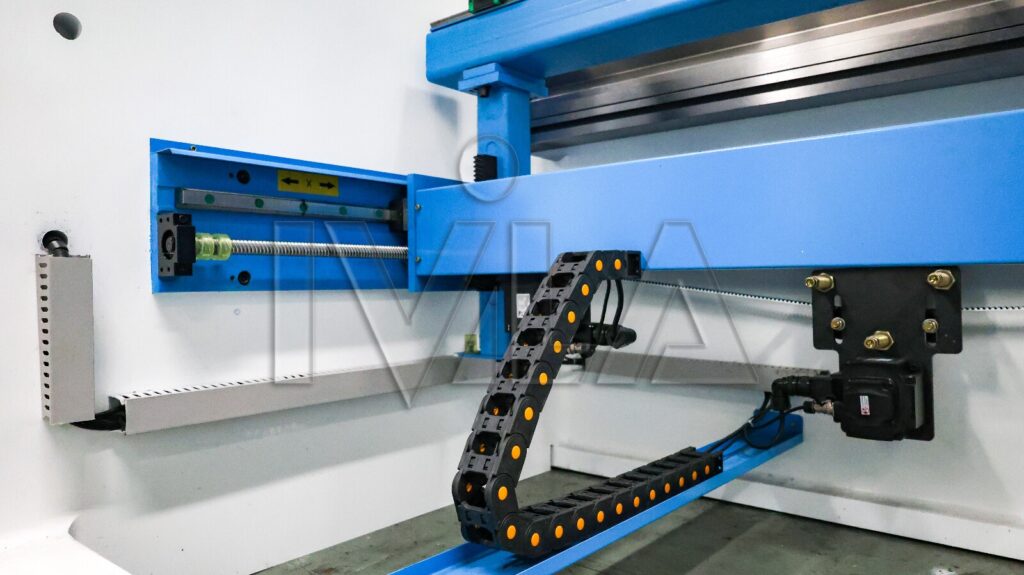

Precision Back Gauge with Superior Stability

  • Ensures precise positioning accuracy for more convenient bending operations
  • Multi-stage stops design to expand positioning range
  • Double linear guide structure for improved stability and smooth movement
  • Equipped with imported ball screw drive and HIWIN linear guide rails for high precision and durability
  •
Get A Quote

WC67Y NC Press Brake – Detailed Specifications

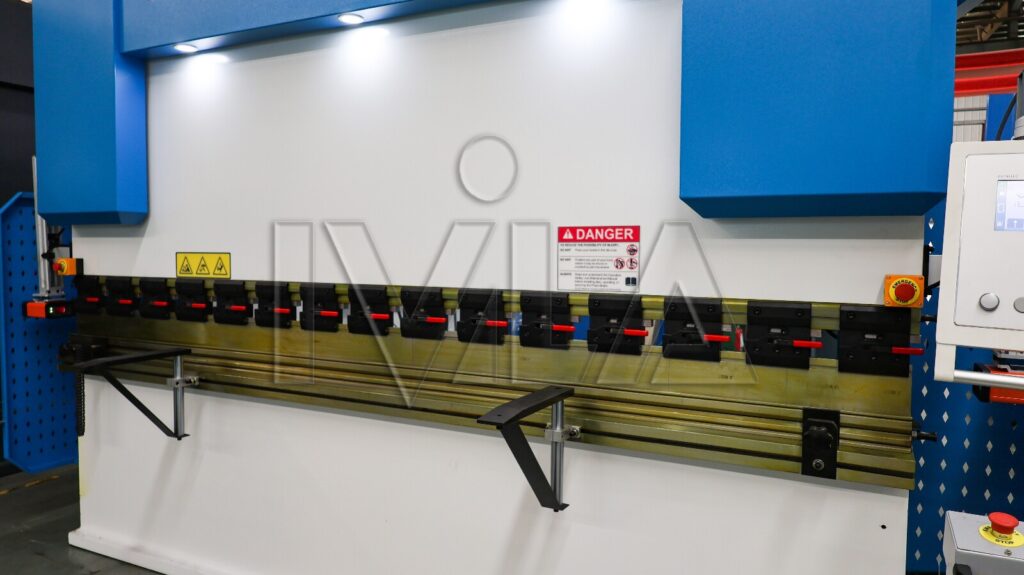

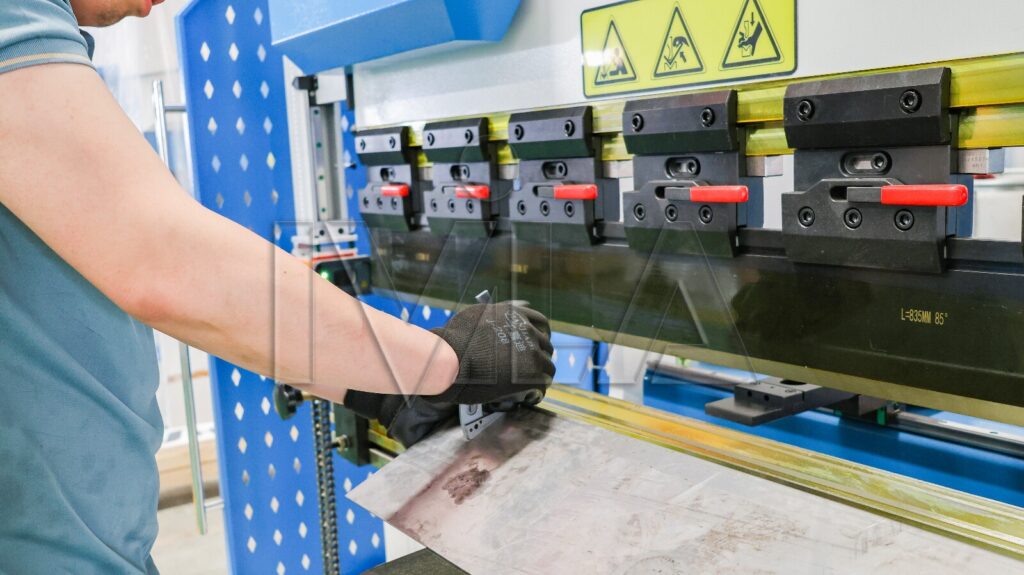

Hith Precision Fast Clamping

Allows quick and convenient clamping of the upper tooling, reducing labor effort and boosting production efficiency Offers high precision, easy installation, secure fastening, and prevents loosening or dropping of tools

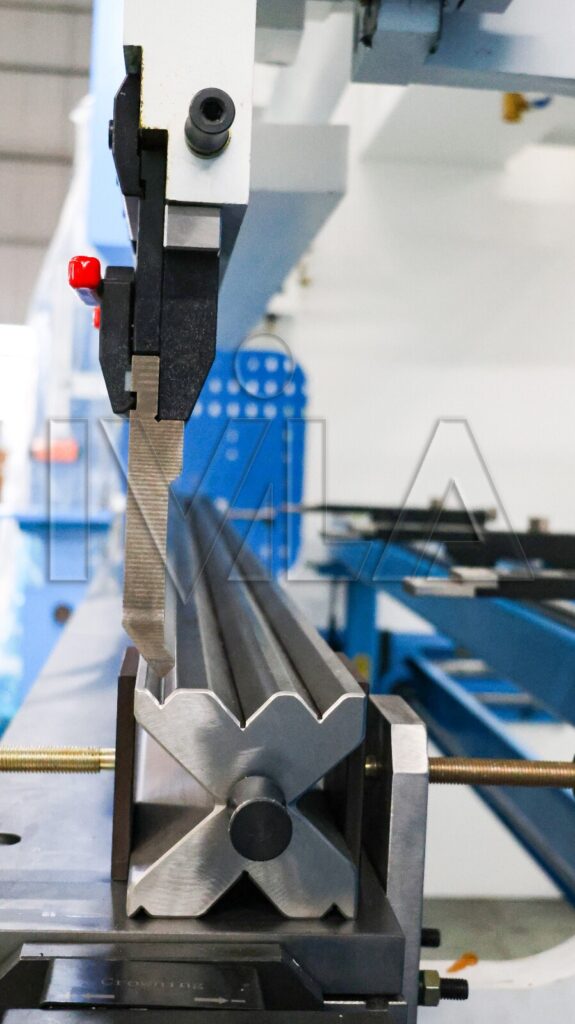

Premium Quality Press Brake Tooling

Forged and quenched for enhanced durability and long service life High precision with excellent straightness and repeatability Ensures consistent and ideal bending results Upper punch and lower tooling can be segmented for flexible application

Adjustable Front Support System

Equipped with 2 sets of movable front supports that travel along linear guide rails Supports can be positioned and locked at any desired location for flexible operation Features rotation and height adjustment functions for improved bending convenience and accuracy Designed to enhance support stability and ease of operation during bending processes

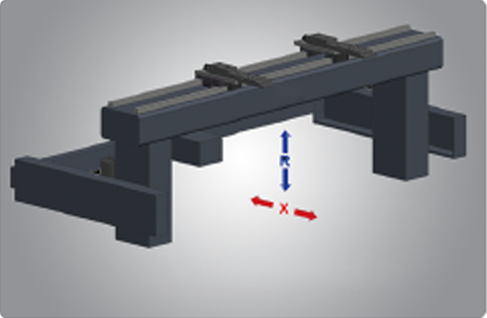

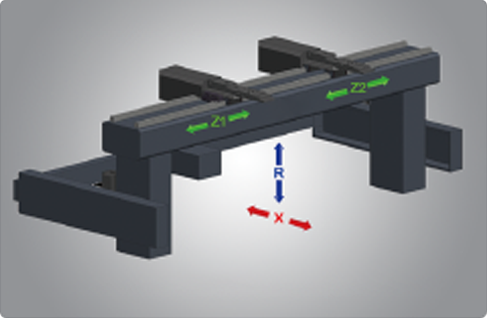

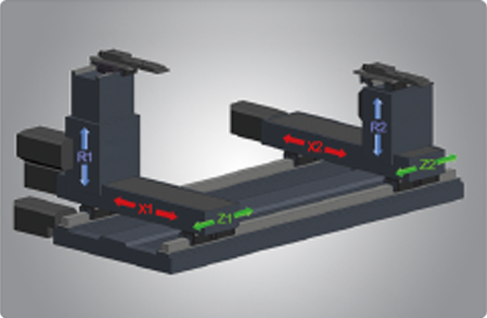

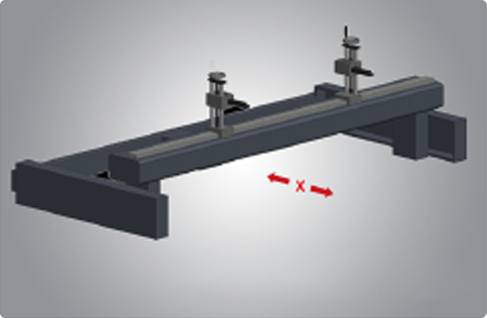

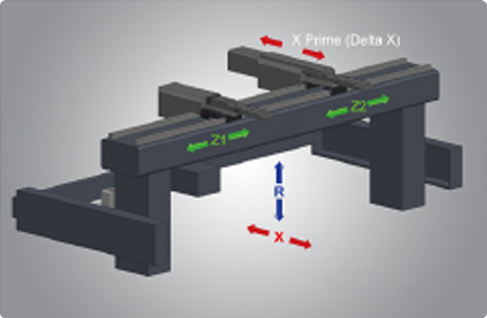

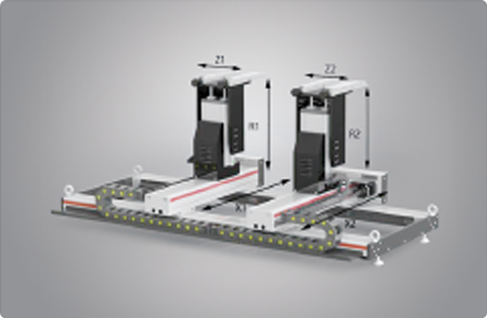

WC67Y NC Press Brake – Advanced Back Gauge System

Technical Parameters

ModelBending Pressure (kn)Bending Length (mm) AColumn Distance (mm) BThroat Depth (mm) DSlider Stroke (mm) CMax Opening Height (mm) EX-axis Max Distance (mm)Sliding Front Supporting Arms (Pcs)Back stopper (PCS)Main Motor (kw)LengthxWidth x Height (mm)Weight (T)
30T/160030016009502301003203002231800x1200x16202000
40T/160040016009502301003203002231800x1200x18202500
40T/220040022001850230100320500225.52200×1200*19002750
40T/250040025001850230100320500225.52500x1200x19003000
50T/250050025001850230100320500225.52500*1200*20003400
63T/250063025001900250100320500225.52500x1300x22104000
63T/320063032002560250100320500235.53200x1300x22104800
80T/250080025001990300100320500227.52500x1400x23005000
80T/320080032002560320100350500237.53200x1500x23006000
80T/400080040003200320100350500247.54000x1500x24007000
100T/2500100025001990320120350500227.52500x1600x24006000
100T/3200100032002600320150400500237.53200x1600x26006800
100T/4000100040003200320150400500247.54000x1600x26008000
125T/320012503200260032015040050023113200x1600x26007000
125T/400012504000320032015040050024114000x1600x26008500
160T/320016003200258032020046050023113200x1700x270010000
160T/400016004000290032020046050024114000x1700x280011000
160T/500016005000390032020046050025115000x1900x310013500
160T/600016006000490032020046050026116300x1900x320018500
200T/320020003200248032020046050023113200x1950x280011000
200T/400020004000290032020046050024114000x1950x280012500
200T/500020005000390032020046050025115000x1950x300014000
200T/600020006000490032020046050026116000x1950x330020000
250T/32002500320024504002505905002318.53250x2000x320018500
250T/40002500400029004002505905002418.54000x2000x340020000
250T/50002500500039004002505905002518.55000x2000x340023000
250T/60002500600049004002505905002618.56000x2000x340027000
300T/320030003200245040025059050023223200x2000x345020500
300T/400030004000290040025059050024224000x2000x345022000
300T/500030005000390040025059050025225000x2000x345025000
300T/600030006000490040025059050026226000x2000x345028500
400T/320040003200240040025059050023303200x2180x340022500
400T/400040004000290040025059050024304000x2180x340025000
400T/500040005000390040025059050025305000x2180x350029000
400T/600040006000490040025059050026306000x2180x380034000
500T/500050005000390040025059050025455050x3500x370042000
500T/600050006000490040032059050026456050x3500x370054000
600T/400060004000290040032059050024554050x4500x370044000
600T/600060006000490040032059050026556050x4500x370060000

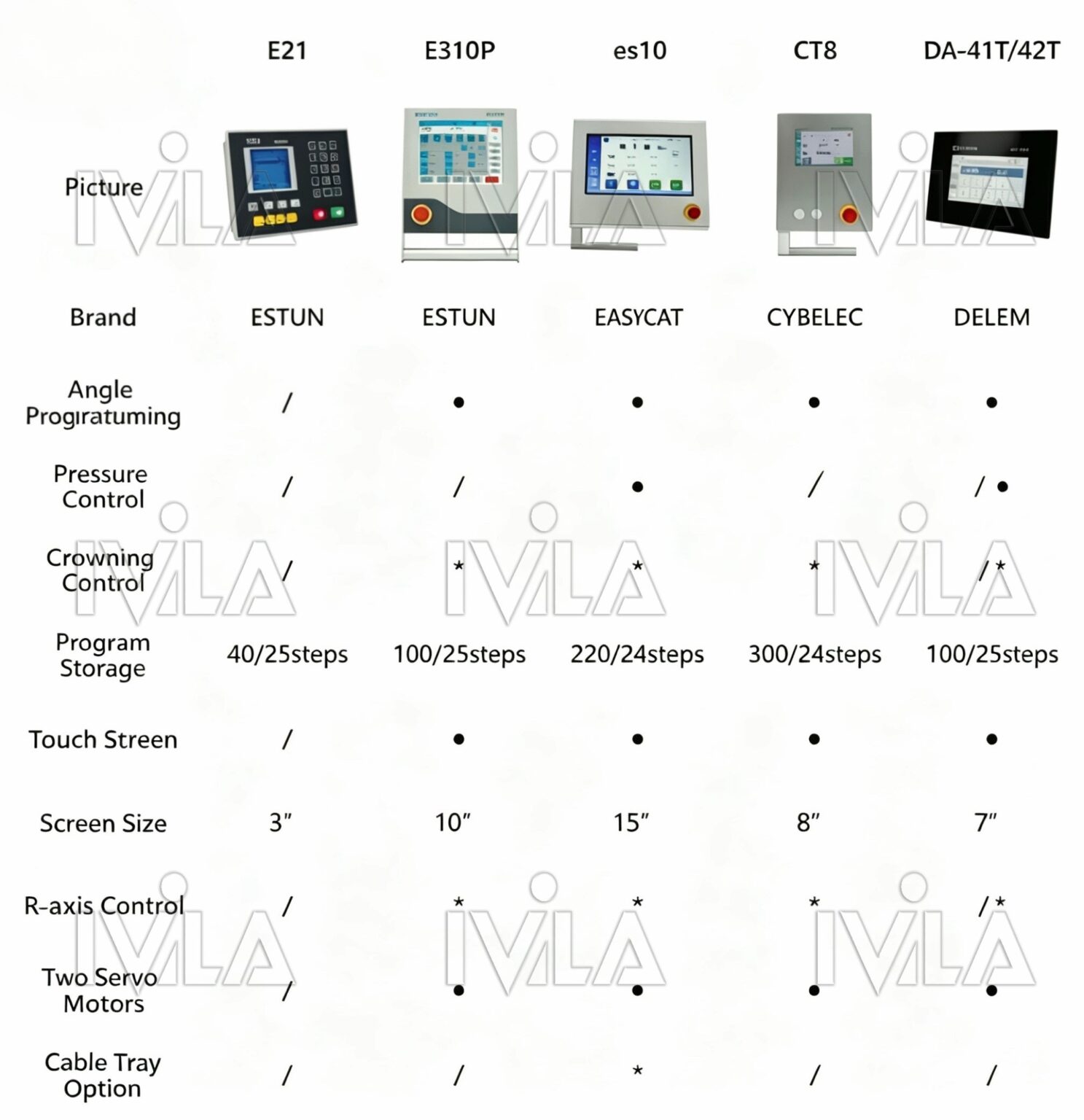

Optional Controls

The new generation press brake controls offer an even higher grade of efficiency in programming, operation and control of today’s press brakes.
