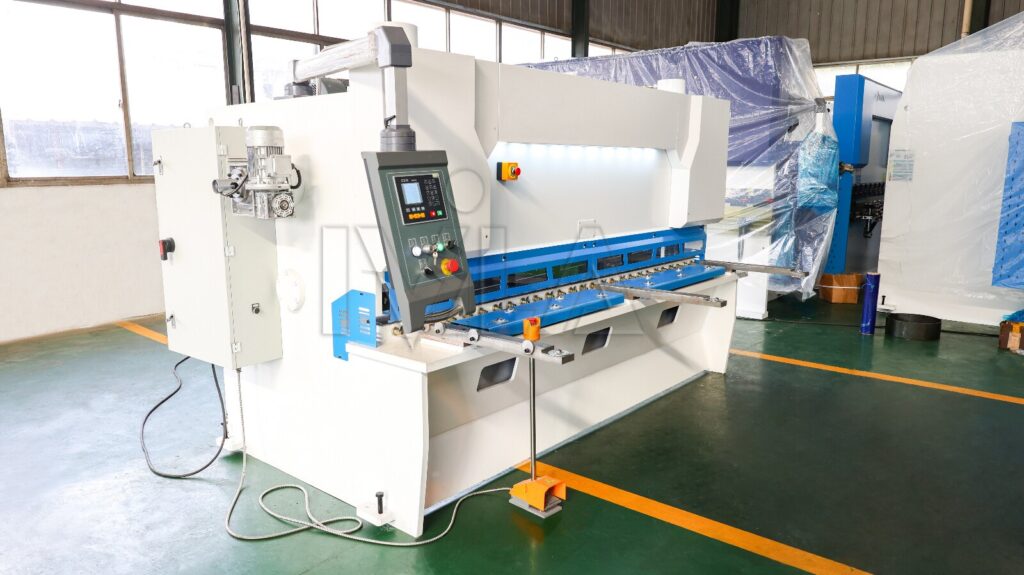

Guillotine Shearing Machine
Shearing Machines That Meet the Highest Standards
China Hydraulic Guillotine Shearing
Machine
technology
Frame Structure

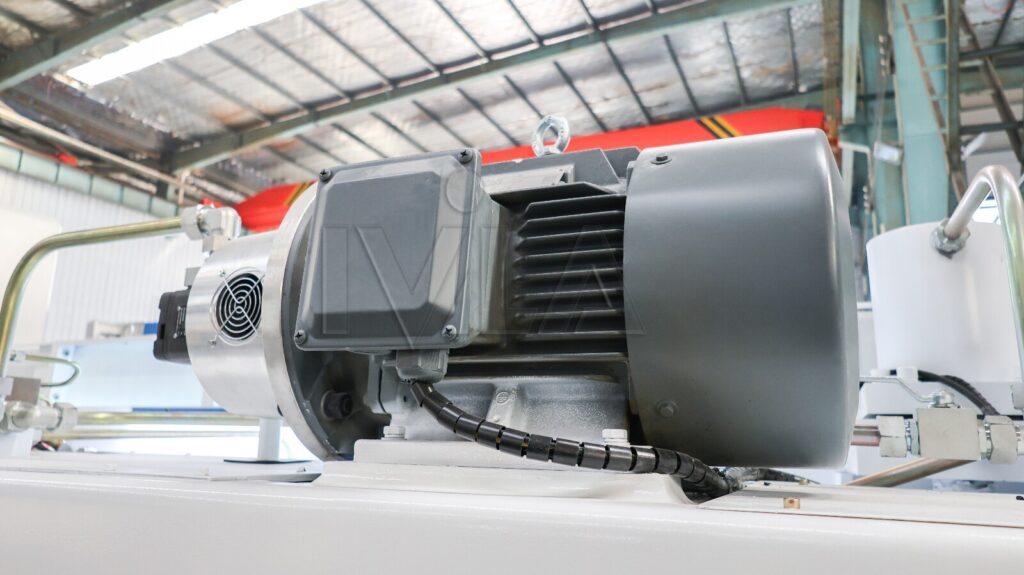

Oil Pump & Motor
High Precision Backgauge
The backgauge system is equipped with high-precision ball screws and linear guideways, ensuring exceptional positioning accuracy and repeatability. Combined with IVILA’s uniquely engineered synchronous transmission system, the machine delivers superior stability, smooth movement, and highly reliable performance during high-speed operation.
Detail Display

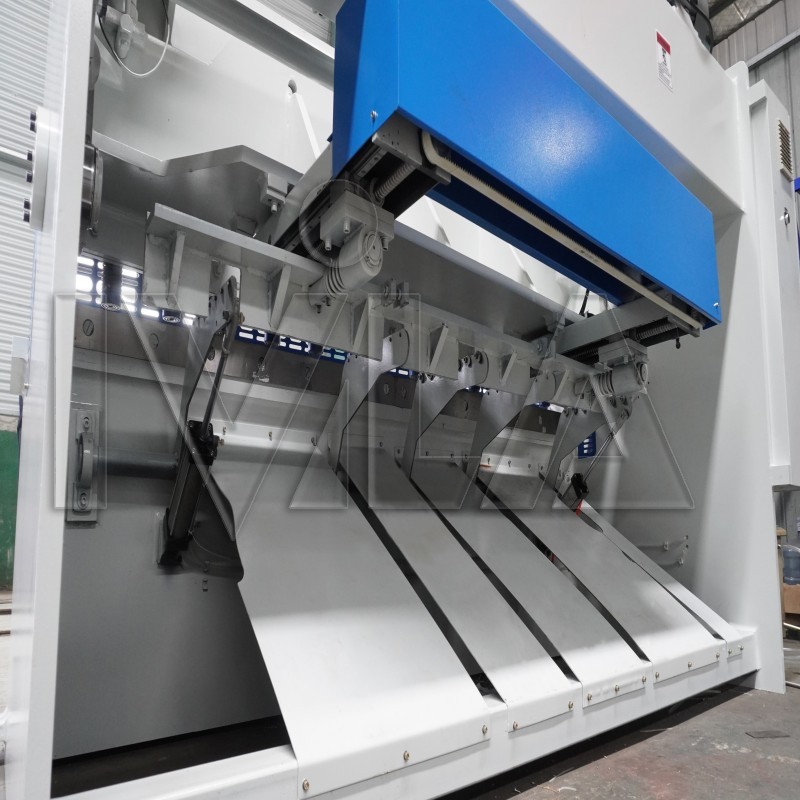

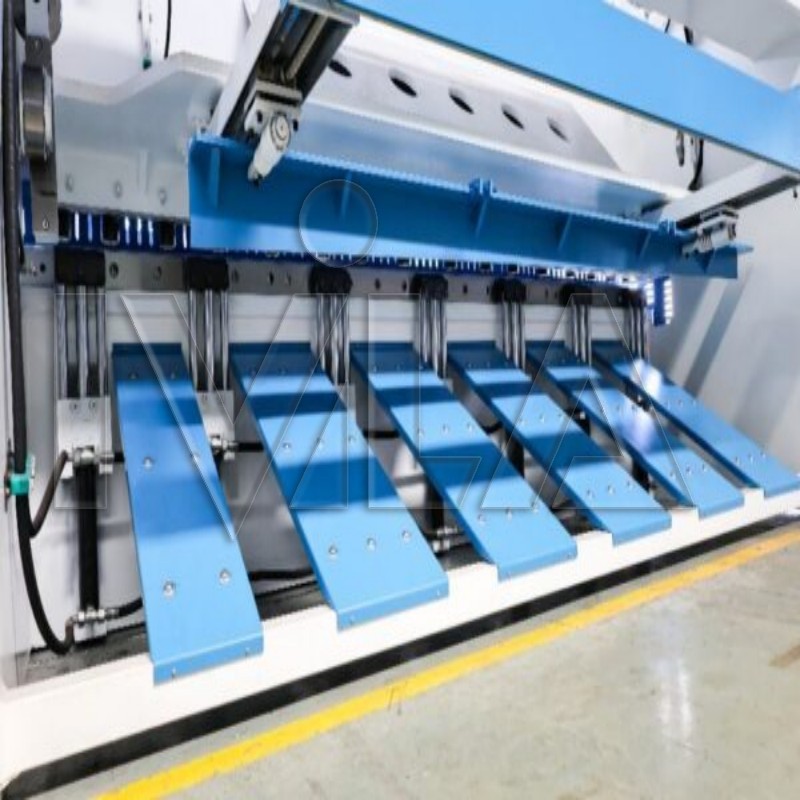

Special Support Frame
IVILA shearing machines feature an ergonomically engineered support frame for easier and more efficient sheet handling. The precision ball-supported worktable enables smooth material feeding while effectively protecting the plate surface from scratches and damage during operation.

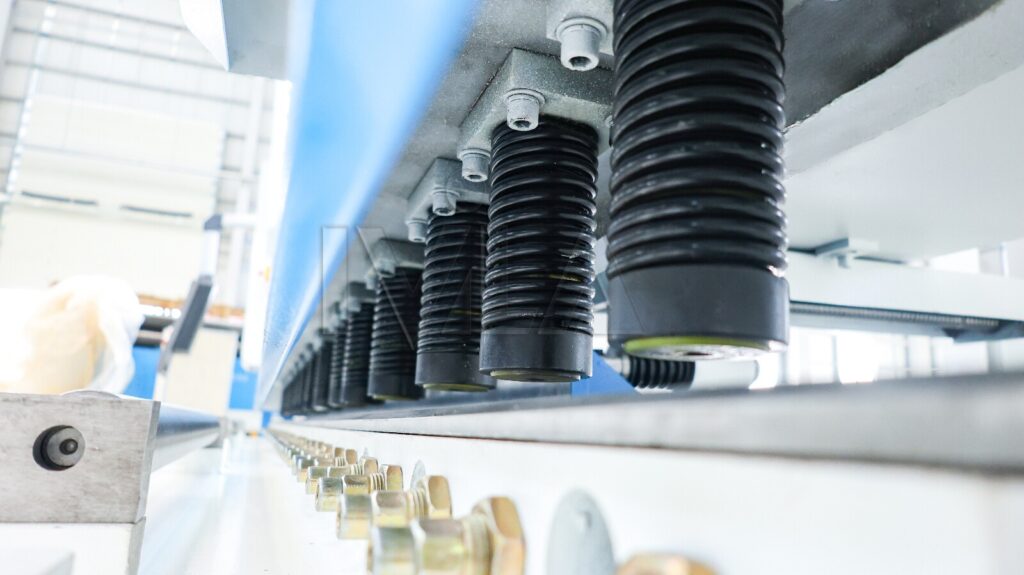

Down-holder Cylinder
Featuring an advanced built-in spring structure with high-performance protective gaskets, IVILA shearing machines effectively eliminate pressure marks and surface scratches on aluminum, stainless steel, and other delicate materials, ensuring superior finished product quality.

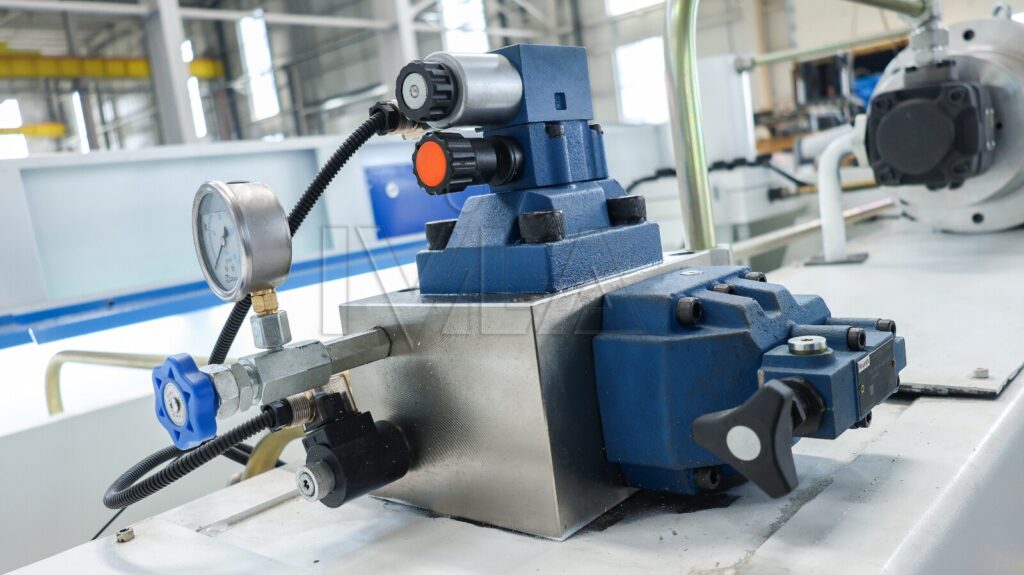

Rexroth Valve
IVILA shearing machines utilize world-renowned Rexroth hydraulic valve systems from BOSCH Group, delivering precise hydraulic control, superior responsiveness, and outstanding durability for demanding industrial applications.
CNC Clearance Adjustment
Equipped with an advanced intelligent control system, IVILA shearing machines achieve fast automatic positioning and high-speed parameter adjustment, ensuring enhanced productivity, precise operation, and seamless workflow efficiency.

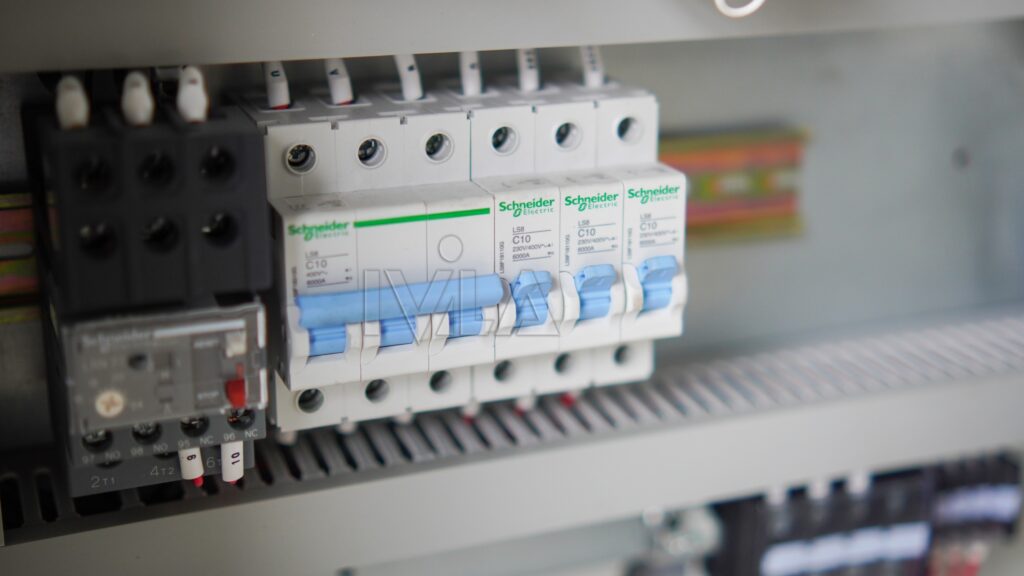

Schneider Electric
IVILA shearing machines are equipped with premium electrical components imported from globally renowned manufacturers and top-tier Sino-foreign joint ventures, ensuring exceptional reliability, operational stability, and full compliance with international standards.

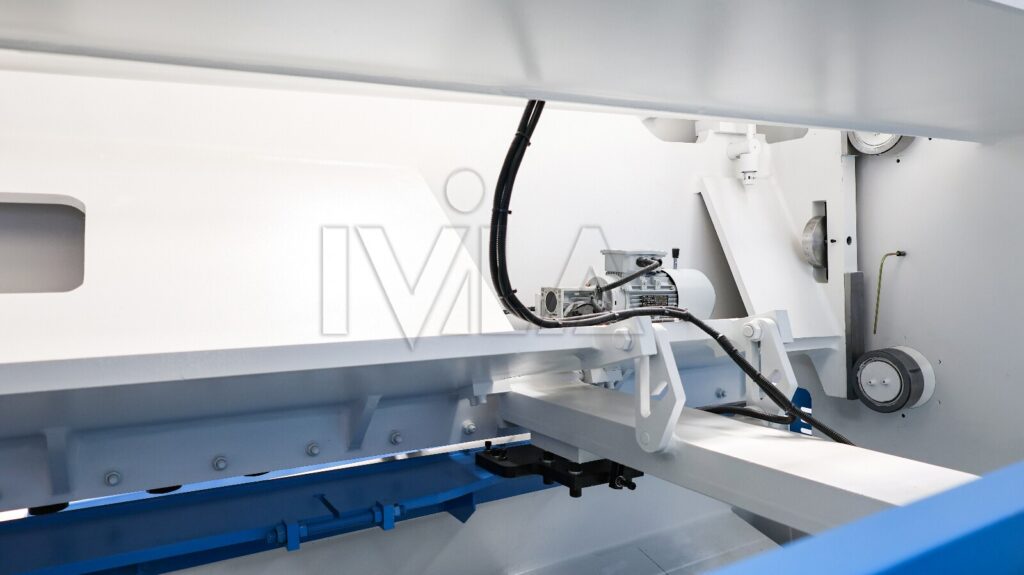

Back Gauge Motor
IVILA shearing machines feature a premium backgauge drive system powered by a high-quality motor, delivering high-speed positioning, exceptional stability, and precise repeatability. For advanced applications, an optional servo motor upgrade provides superior response speed and ultra-precise positioning control.
Configuration Showcase: Chinese Hydraulic Shearing Machines
Technical Parameters
| Type | Cutting Thickness (mm) | Cutting Width (mm) | Cutting Angle (°) | Material Strength (KN/cm) | Stopper Adjust Range (mm) | Power (KW) | Dimension L×W×H(mm) |
| 4×2500 | 4 | 2500 | 1°30´ | ≤450 | 20~500 | 5.5 | 3040×1550×1550 |
| 6×3200 | 6 | 3200 | 1°30´ | ≤450 | 20~500 | 7.5 | 3040×1550×1550 |
| 8×4000 | 8 | 4000 | 1°30´ | ≤450 | 20~600 | 7.5 | 3840×1710×1620 |
| 10×6000 | 10 | 6000 | 1°30´ | ≤450 | 20~800 | 15 | 6500×2100×2300 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 20~600 | 18.5 | 3240×1900×1900 |
| 16×4000 | 16 | 4000 | 2°30´ | ≤450 | 20~800 | 18.5 | 4650×2150×2200 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 20~800 | 22 | 4150×2350×2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 20~1000 | 37 | 3200×2700×2900 |
| 30×3200 | 30 | 3200 | 3°30´ | ≤450 | 20~1000 | 40 | 4200×2500×2600 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 20~1000 | 90 | 4300×3300×3000 |
Optional Controls
Understand the system, then choose the system. This enables you to plan your usage more effectively.

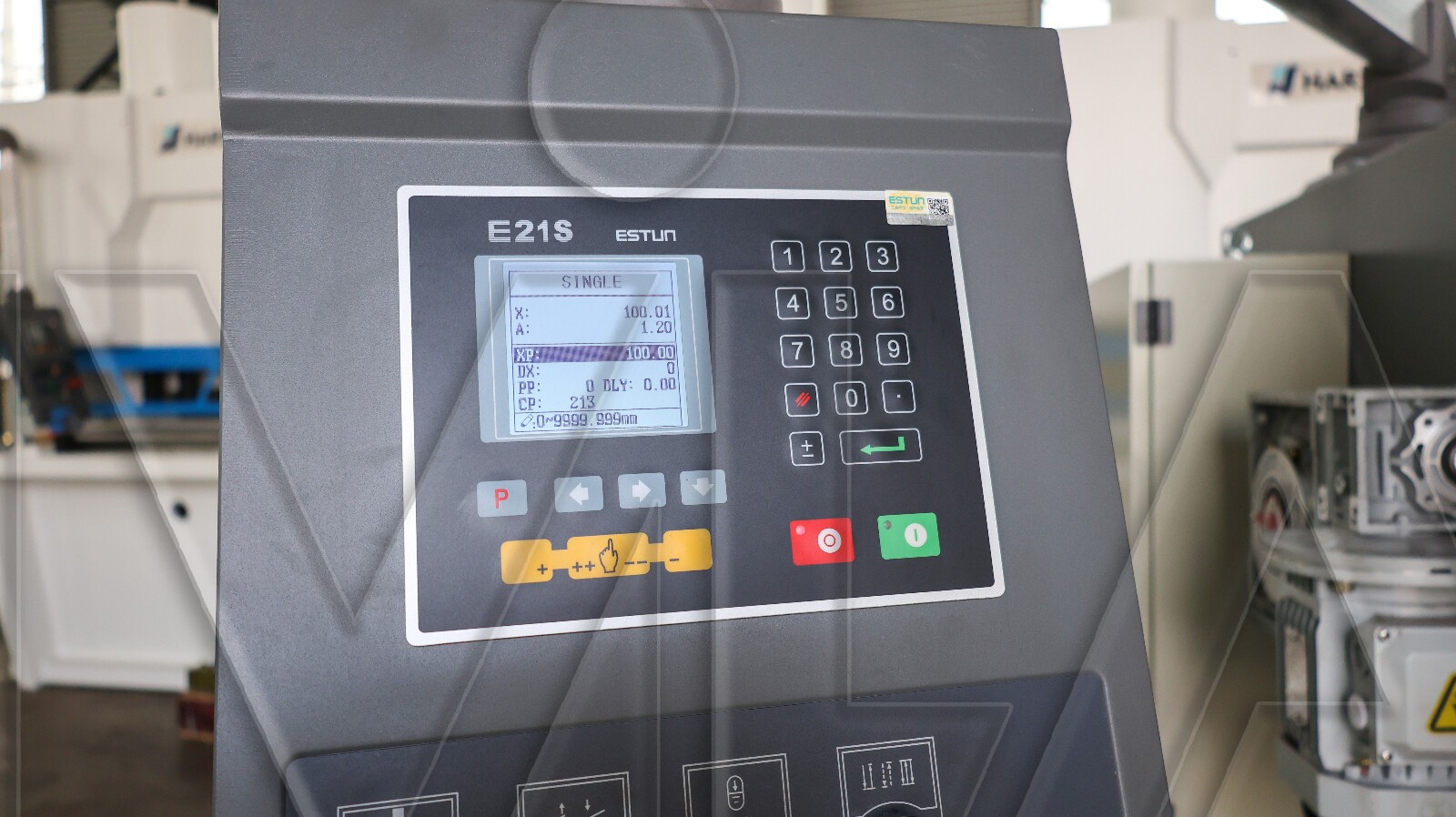

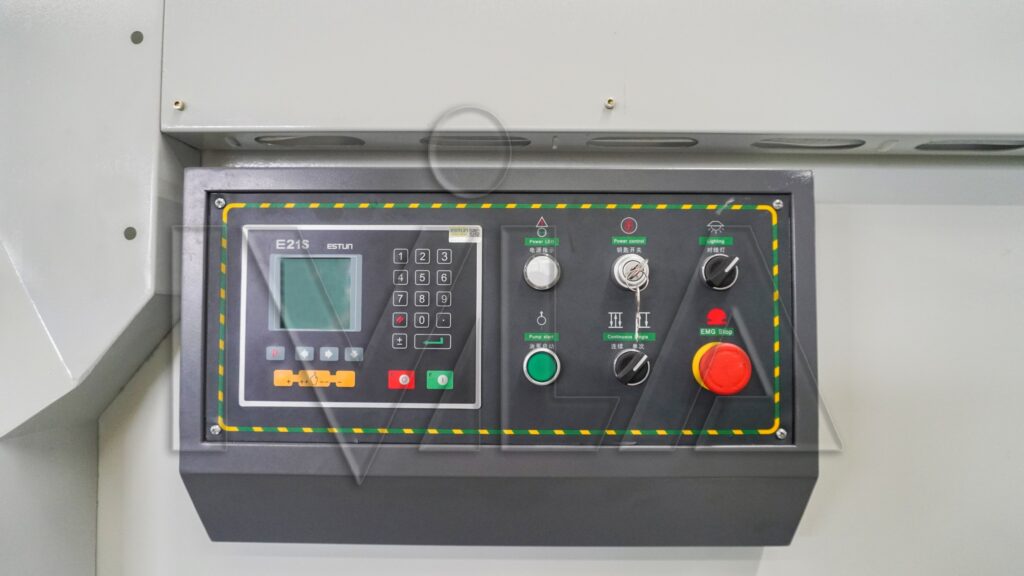

E21S System
Main Features
Typical E21S functions include:
- Backgauge control
- Intelligent positioning
- Retract function
- Automatic reference search
- One-key parameter backup and restore
- 40 programs storage
- Up to 25 steps per program
- Power-off memory protection
- Manual axis movement
- Metric / inch switching
- Chinese and English interface support

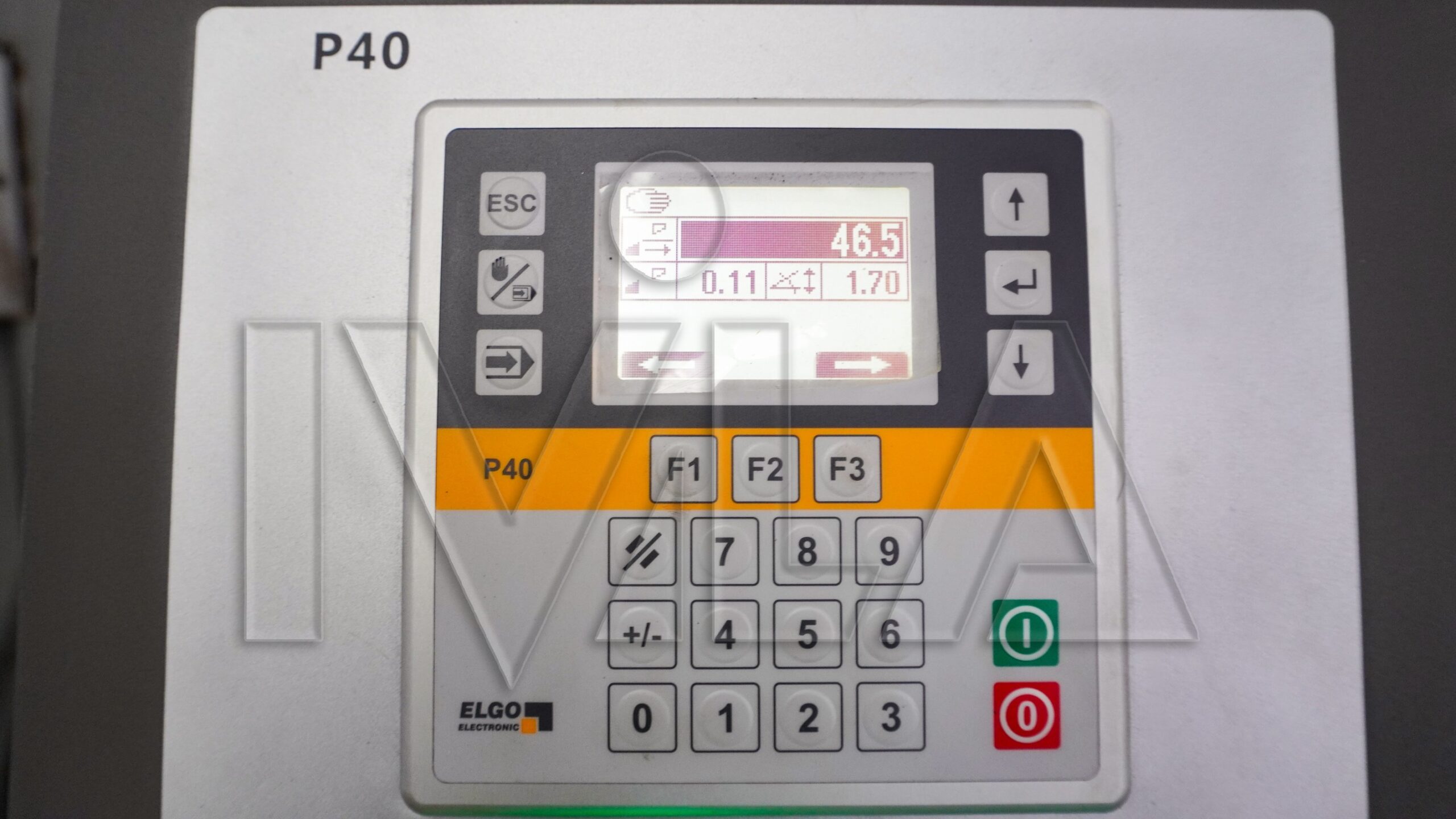

P40 System
Main Features
Typical P40 functions include:
- Touch screen operation
- Backgauge control
- Intelligent positioning
- Automatic reference search
- Multi-step program storage
- Manual / Auto operation modes
- Metric / inch switching
- Material parameter settings
- Servo backgauge support
- Production counter
- Multi-language interface support
For shearing machines, the P40 can also control:
- Cutting angle
- Blade gap
- Stroke length/time
- Sheet support system
- Return-to-origin function
- Automatic positioning sequences

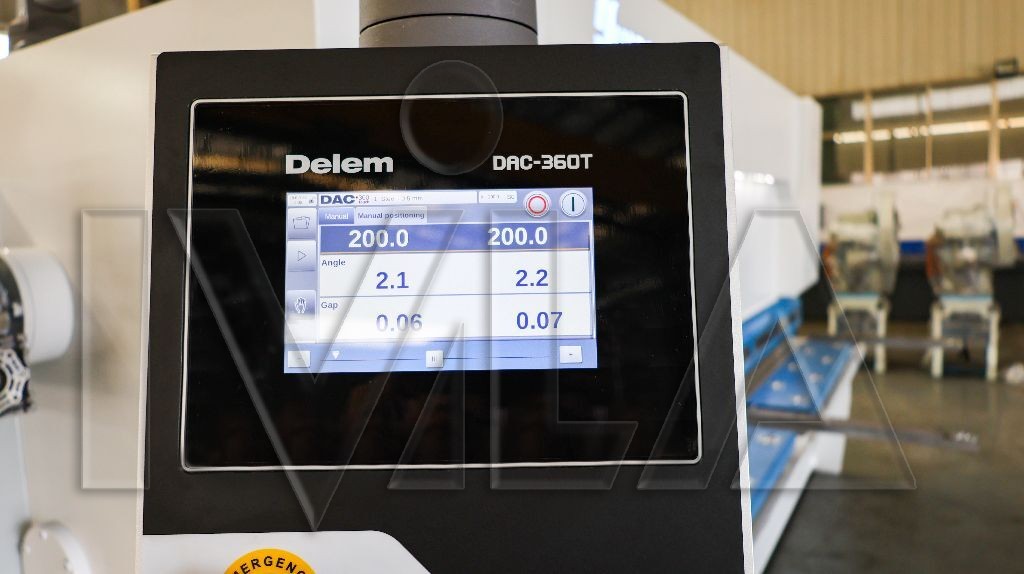

DELEM DAC306T System
Main Features
Typical DELEM DAC306T functions include:
- Touch screen operation
- Backgauge control
- Intelligent positioning
- Retract function
- Automatic calculation functions
- Multi-step program storage
- Manual axis movement
- Metric / inch switching
- USB program backup
- Multi-language interface support
- Servo and inverter support
- Stock counting function
For shearing machines, the DAC306T can also control:
- Cutting angle
- Blade gap
- Stroke length limitation
- Sheet support system
- Front / back gauge positioning
- Automatic parameter calculation based on material thickness
