CNC Press Brake

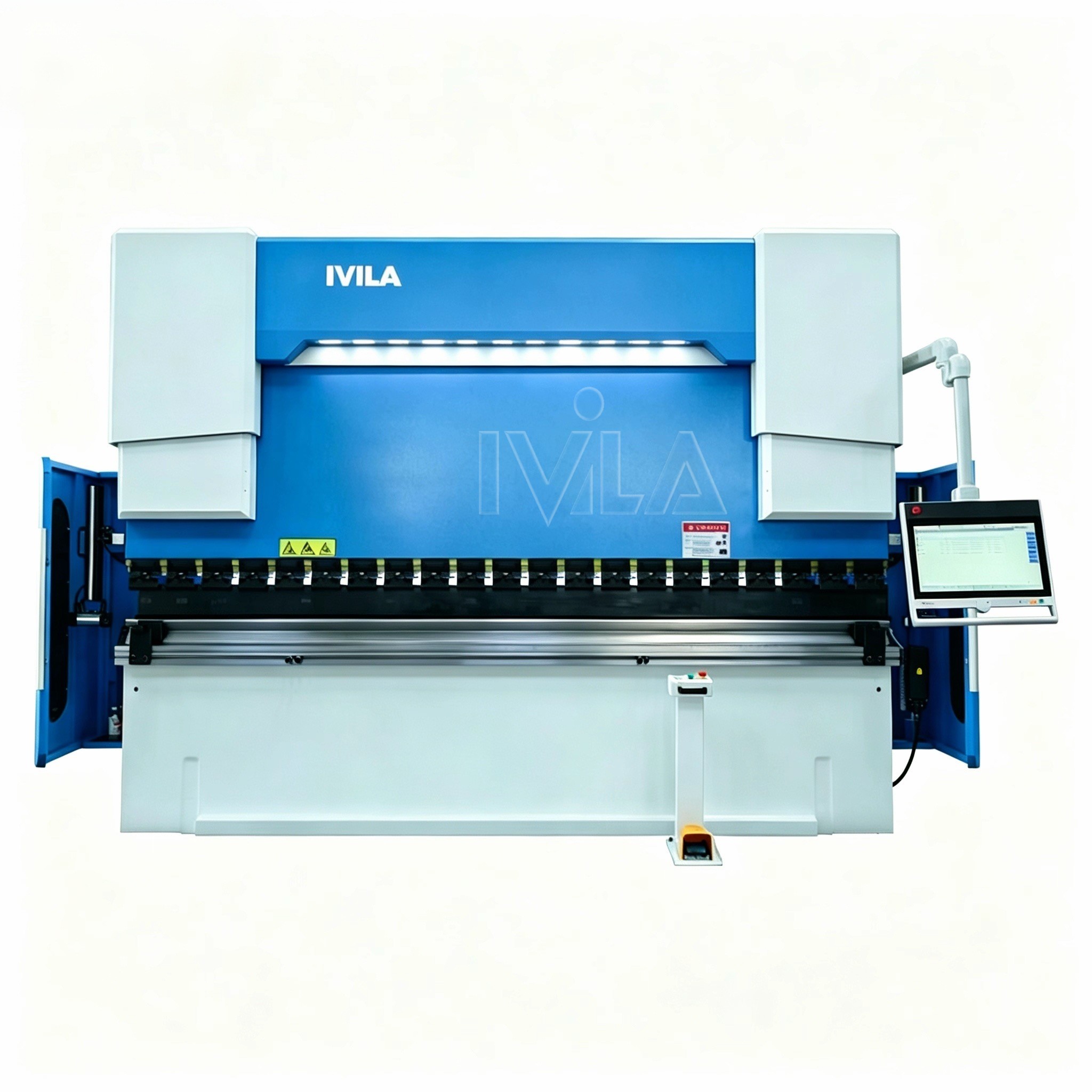

CNC Press Brake WC67Y

IVILA Intelligent Display System Features:

CNC system capable of controlling 4 to 8 axes (Y1, Y2, X1, X2, R1, R2, Z1, Z2)
Front workpiece support for enhanced stability
High-quality German components:
- Rexroth control system
- Bosch hydraulic pump
- EMB hydraulic connectors
Siemens servo motor for precise and reliable operation

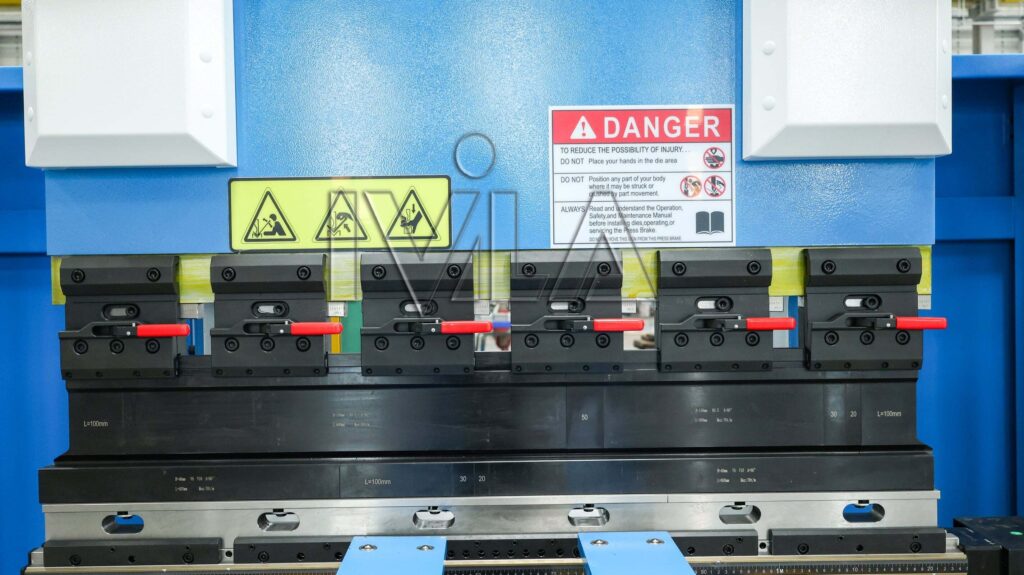

CNC tooling compatible with single V and four-sided V lower dies, up to 835 mm section
Front safety covers equipped with interlock switches for operator protection

Frame Construction & Manufacturing Quality

The foundation of every IVILA press brake:

Robust mono-block frame: Manufactured from mill-certified, high-strength steel, ensuring outstanding rigidity, long-term stability, and consistent bending accuracy year after year.
Premium raw materials: Carefully selected to guarantee superior machine quality and structural integrity.
Precision welding and assembly: Each frame undergoes meticulous welding and assembly for exceptional strength, durability, and reliability.
Stress-relief annealing: Post-welding annealing eliminates internal stresses, enhancing long-term performance.
High-precision machining: The frame is machined in a single setup on a large floor-type boring and milling machine, ensuring maximum dimensional accuracy and perfect alignment of all critical components.

Get A Quote

Cylinder Connection

The foundation of every IVILA press brake:

Robust mono-block frame: Manufactured from mill-certified, high-strength steel for outstanding rigidity, long-term stability, and consistently precise bending accuracy.
Premium-grade raw materials: Carefully selected to ensure superior machine quality and structural integrity.
Precision welding and assembly: Each frame is meticulously welded and assembled for exceptional strength, durability, and reliability.
Stress-relief annealing: Post-welding annealing eliminates internal stresses and enhances long-term performance.
High-precision machining: The frame is machined in a single setup on a large floor-type boring and milling machine, ensuring maximum dimensional accuracy and perfect alignment of all critical components.

Get A Quote

Oil Pump & Motor

Premium Version:
Equipped with world-class hydraulic pumps and motors, the IVILA press brake delivers whisper-quiet operation, exceptional efficiency, and unmatched durability.
Technical Version:
Featuring globally recognized hydraulic components, IVILA press brakes provide stable, low-noise performance, superior energy efficiency, and long-term operational reliability.
Concise Version:
IVILA press brakes utilize top-brand hydraulic pumps and motors for quiet, efficient, and durable performance.

Get A Quote

Hydraulic System

Higher Frequency Response

Closed-loop electro-hydraulic synchronized servo control system: Utilizes industry-leading technology to achieve exceptional synchronization accuracy and bending performance.
High-speed response: Ensures fast, precise, and stable machine operation, improving productivity and forming accuracy.
Comprehensive hydraulic protection: Equipped with overload and overflow protection functions to safeguard the hydraulic system and prevent oil leakage.
Easy monitoring: Features a clearly visible oil level indicator for convenient inspection and maintenance.
Reliable continuous operation: Designed to operate continuously at full rated load while maintaining outstanding stability, precision, and long-term reliability.

Get A Quote

Crowning System

Closed-loop compensation ensures precise, consistent full-length bending, automatically adjusted by the CNC system.

Technical Version:
Featuring advanced closed-loop compensation, the CNC system calculates and applies precise adjustments in real time, guaranteeing uniform bending angles across the entire sheet.
High-End Product Manual Version:
IVILA’s compensation closed-loop control maintains superior accuracy by automatically calculating the necessary adjustments through the CNC system, ensuring perfectly consistent bending angles from start to finish.

Get A Quote

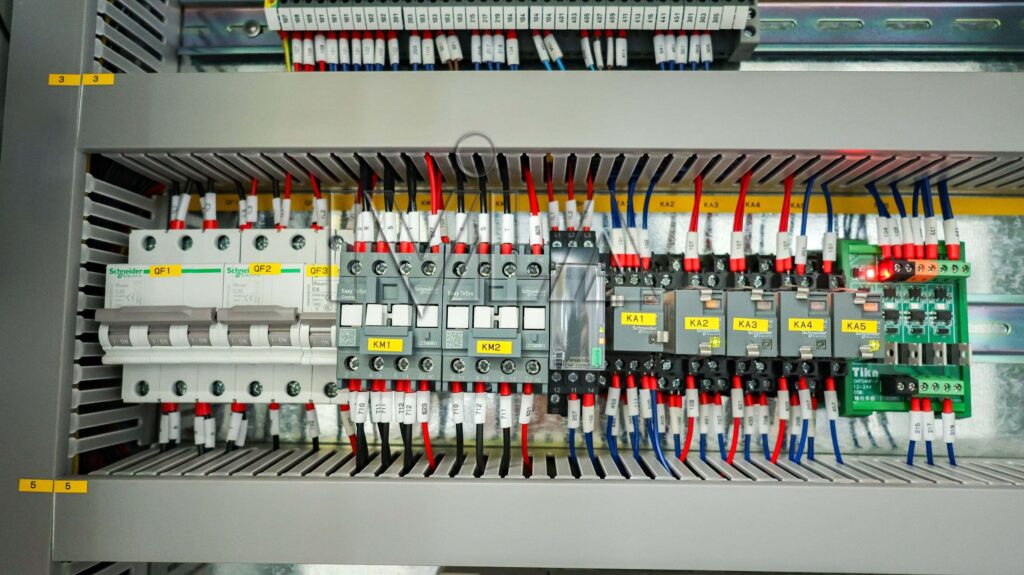

SCHNEIDER Electrical

Electrical components are imported or sourced from Sino-foreign joint ventures, meeting international standards for reliability, safety, and long service life. They feature excellent anti-interference performance, and a radiation unit is installed in the electrical cabinet for added protection.

Get A Quote

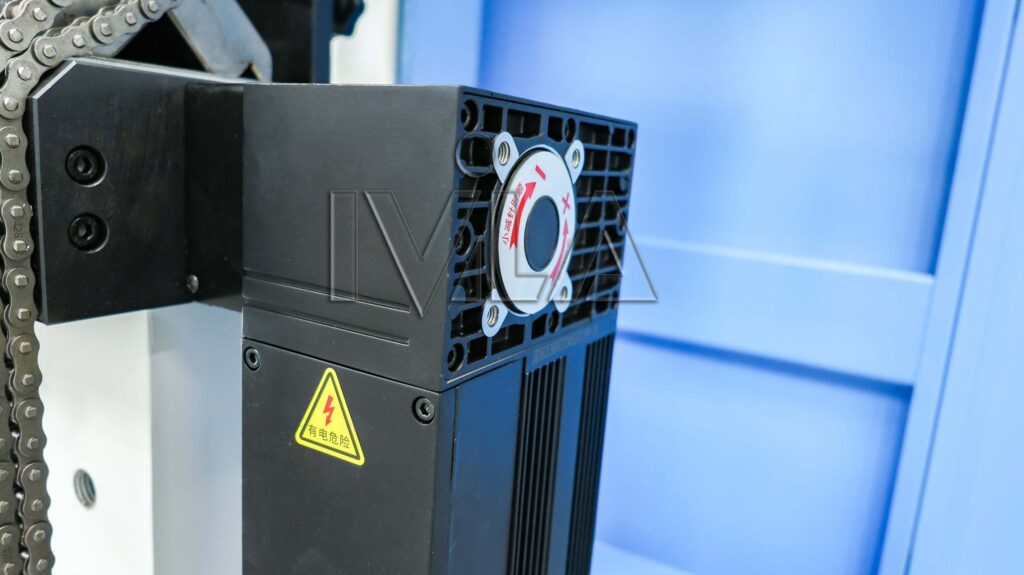

Auto backage with servo drive

IVILA system ensures outstanding precision and productivity, featuring imported ball screw transmission and dual linear guide rail construction for precise and stable positioning. The multistage stop system expands positioning capability, making bending operations more flexible and efficient.

Get A Quote

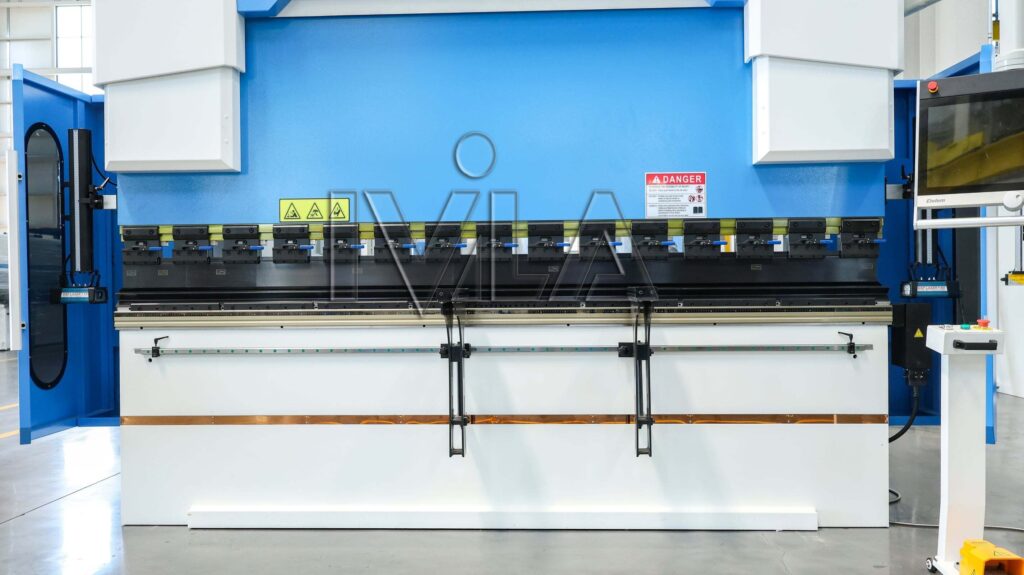

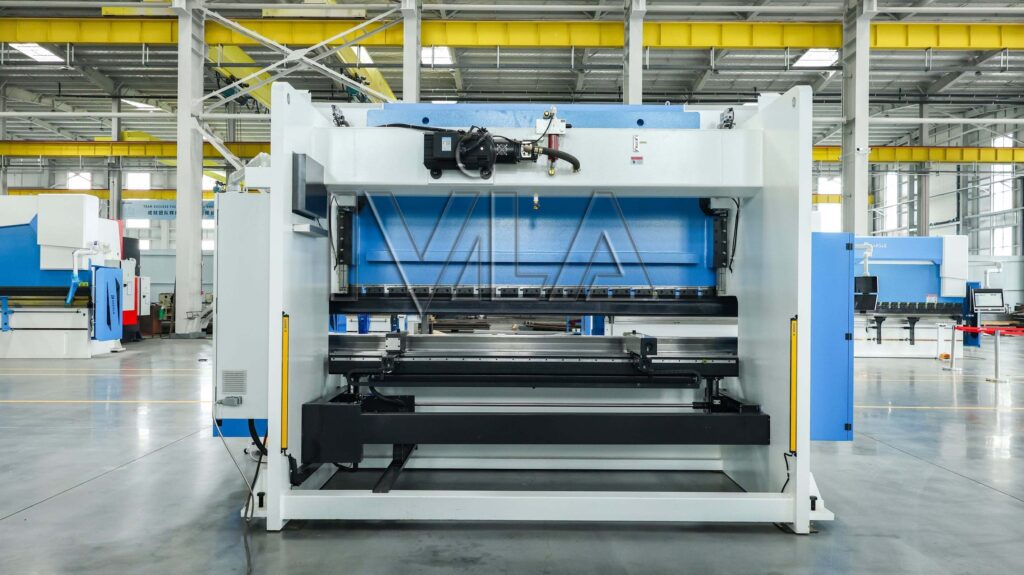

Detail Display

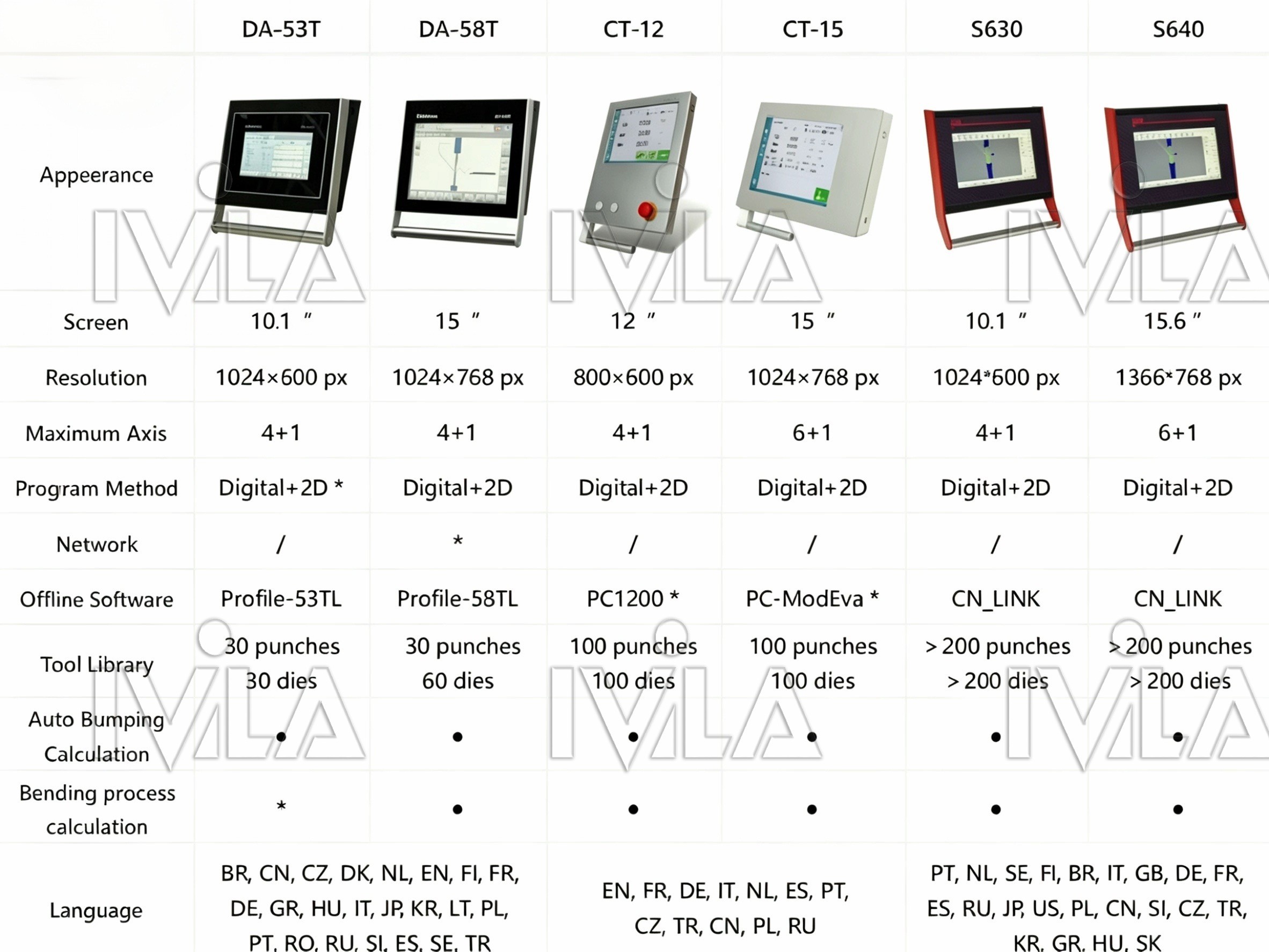

CNC Press Brake For System Selection

Technical Parameters

Model	Bending Pressure (kn)	Bending Length (mm) A	Column Distance (mm) B	Throat Depth (mm) D	Slider Stroke (mm) C	Max Opening Height (mm) E	X-axis Max Distance (mm)	Sliding Front Supporting Arms (Pcs)	Back stopper (PCS)	Main Motor (kw)	LengthxWidth x Height (mm)	Weight ^(T)
30T/1600	300	1600	950	230	100	320	300	2	2	3	1800x1200x1620	2000
40T/1600	400	1600	950	230	100	320	300	2	2	3	1800x1200x1820	2500
40T/2200	400	2200	1850	230	100	320	500	2	2	5.5	2200×1200*1900	2750
40T/2500	400	2500	1850	230	100	320	500	2	2	5.5	2500x1200x1900	3000
50T/2500	500	2500	1850	230	100	320	500	2	2	5.5	250012002000	3400
63T/2500	630	2500	1900	250	100	320	500	2	2	5.5	2500x1300x2210	4000
63T/3200	630	3200	2560	250	100	320	500	2	3	5.5	3200x1300x2210	4800
80T/2500	800	2500	1990	300	100	320	500	2	2	7.5	2500x1400x2300	5000
80T/3200	800	3200	2560	320	100	350	500	2	3	7.5	3200x1500x2300	6000
80T/4000	800	4000	3200	320	100	350	500	2	4	7.5	4000x1500x2400	7000
100T/2500	1000	2500	1990	320	120	350	500	2	2	7.5	2500x1600x2400	6000
100T/3200	1000	3200	2600	320	150	400	500	2	3	7.5	3200x1600x2600	6800
100T/4000	1000	4000	3200	320	150	400	500	2	4	7.5	4000x1600x2600	8000
125T/3200	1250	3200	2600	320	150	400	500	2	3	11	3200x1600x2600	7000
125T/4000	1250	4000	3200	320	150	400	500	2	4	11	4000x1600x2600	8500
160T/3200	1600	3200	2580	320	200	460	500	2	3	11	3200x1700x2700	10000
160T/4000	1600	4000	2900	320	200	460	500	2	4	11	4000x1700x2800	11000
160T/5000	1600	5000	3900	320	200	460	500	2	5	11	5000x1900x3100	13500
160T/6000	1600	6000	4900	320	200	460	500	2	6	11	6300x1900x3200	18500
200T/3200	2000	3200	2480	320	200	460	500	2	3	11	3200x1950x2800	11000
200T/4000	2000	4000	2900	320	200	460	500	2	4	11	4000x1950x2800	12500
200T/5000	2000	5000	3900	320	200	460	500	2	5	11	5000x1950x3000	14000
200T/6000	2000	6000	4900	320	200	460	500	2	6	11	6000x1950x3300	20000
250T/3200	2500	3200	2450	400	250	590	500	2	3	18.5	3250x2000x3200	18500
250T/4000	2500	4000	2900	400	250	590	500	2	4	18.5	4000x2000x3400	20000
250T/5000	2500	5000	3900	400	250	590	500	2	5	18.5	5000x2000x3400	23000
250T/6000	2500	6000	4900	400	250	590	500	2	6	18.5	6000x2000x3400	27000
300T/3200	3000	3200	2450	400	250	590	500	2	3	22	3200x2000x3450	20500
300T/4000	3000	4000	2900	400	250	590	500	2	4	22	4000x2000x3450	22000
300T/5000	3000	5000	3900	400	250	590	500	2	5	22	5000x2000x3450	25000
300T/6000	3000	6000	4900	400	250	590	500	2	6	22	6000x2000x3450	28500
400T/3200	4000	3200	2400	400	250	590	500	2	3	30	3200x2180x3400	22500
400T/4000	4000	4000	2900	400	250	590	500	2	4	30	4000x2180x3400	25000
400T/5000	4000	5000	3900	400	250	590	500	2	5	30	5000x2180x3500	29000
400T/6000	4000	6000	4900	400	250	590	500	2	6	30	6000x2180x3800	34000
500T/5000	5000	5000	3900	400	250	590	500	2	5	45	5050x3500x3700	42000
500T/6000	5000	6000	4900	400	320	590	500	2	6	45	6050x3500x3700	54000
600T/4000	6000	4000	2900	400	320	590	500	2	4	55	4050x4500x3700	44000
600T/6000	6000	6000	4900	400	320	590	500	2	6	55	6050x4500x3700	60000
