pneumatic punch press
Sheet metal bending machines to meet the highest demands

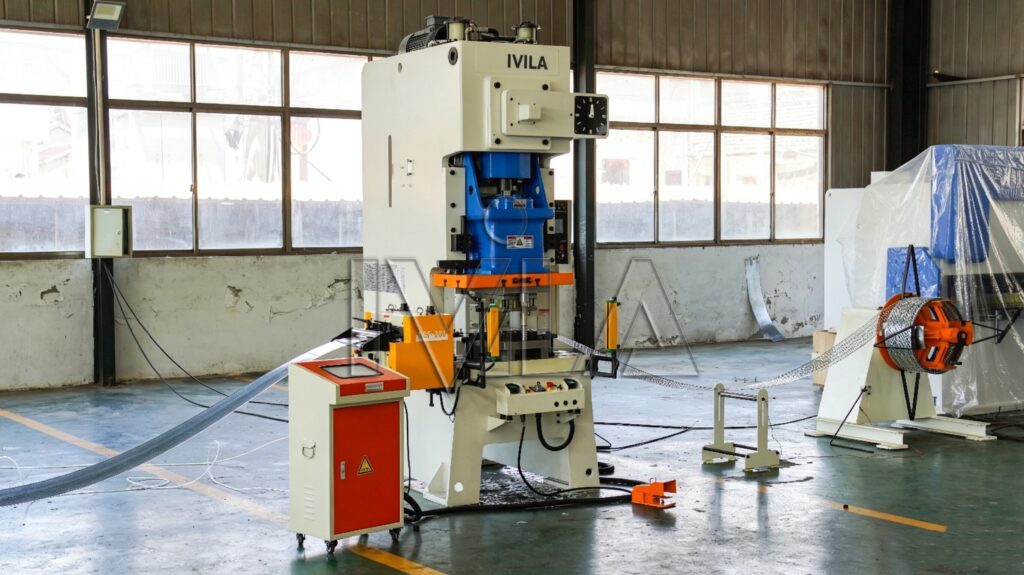

pneumatic punch press
A pneumatic punch press is a type of stamping machine that uses compressed air as the driving force to perform punching, pressing, forming, and light-duty metal processing operations. It is widely used in small to medium-scale production due to its fast response, simple structure, and high operational efficiency.
technology
Frame Structure
The frame structure of a pneumatic punch press is the main load-bearing body that supports the entire air-driven stamping system. Although the driving force comes from compressed air, the frame determines the machine’s rigidity, stability, precision, and working safety.

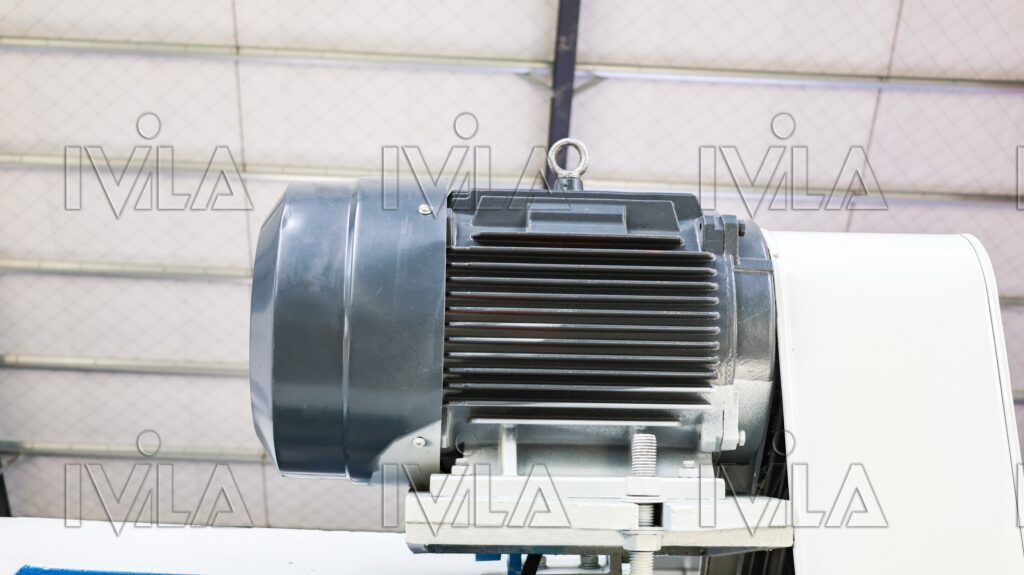

Oil Pump & Motor
The oil pump and motor system is the core power unit in hydraulic and some hybrid press machines. It converts electrical energy into hydraulic energy, providing stable pressure and flow to drive cylinders, clutches, counterbalance systems, and other mechanical functions.

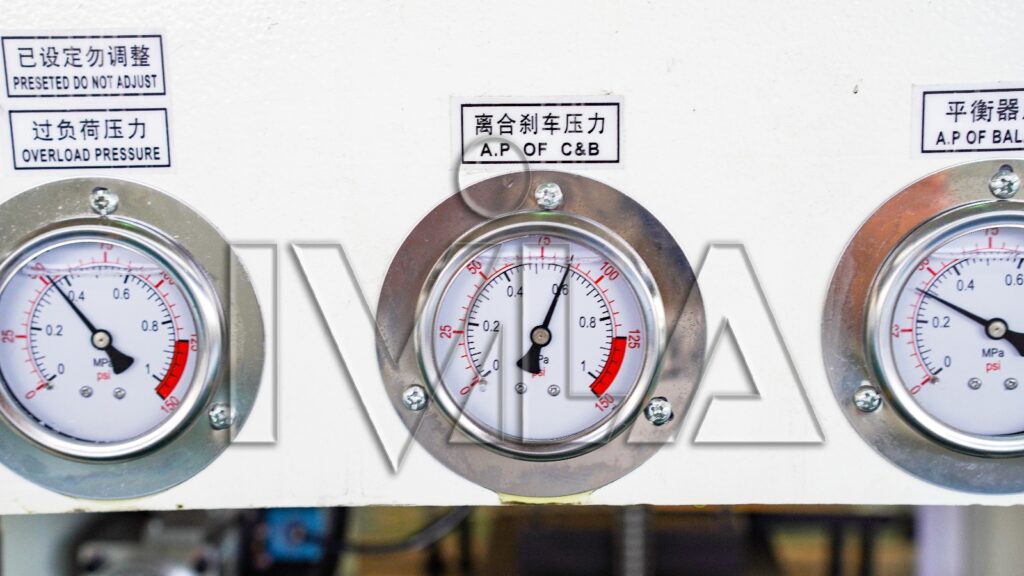

High Precision Backgauge
A pressure gauge is a measuring instrument used to display the pressure level inside a pneumatic or hydraulic system in real time. In punch presses and related industrial equipment, it plays a critical role in monitoring system safety, stability, and performance.
Detail Display
Special Support Frame
A Special Support Frame refers to a customized structural reinforcement system designed to enhance the rigidity, stability, and load-bearing capacity of industrial machines such as mechanical punch presses, hydraulic presses, and forming equipment. It is used when standard frame structures are not sufficient for high-precision or heavy-duty applications.

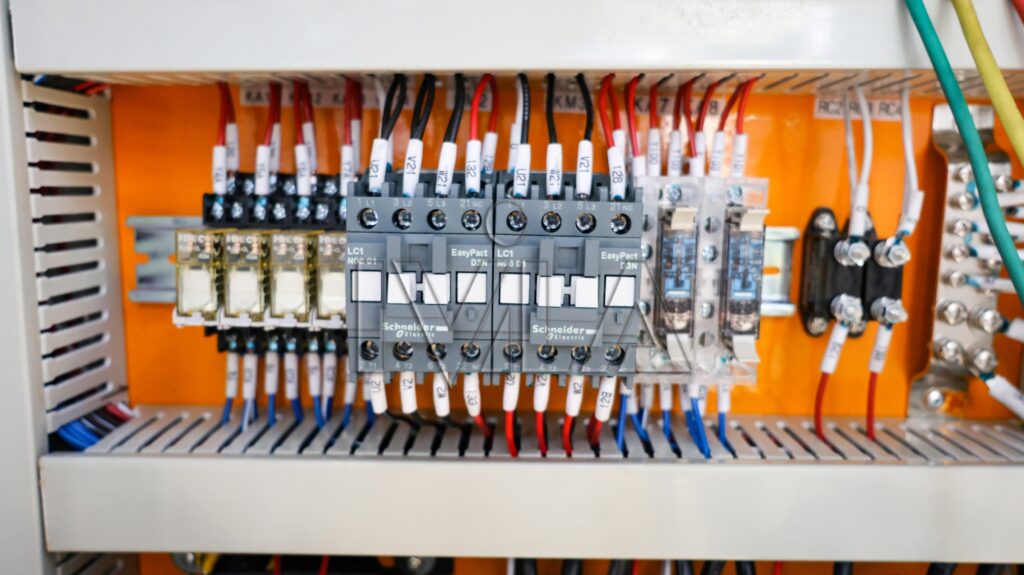

Electrical Components
Schneider Electric is a global leader in energy management, industrial automation, and electrical control systems. Its products are widely used in industrial machinery such as mechanical punch presses, hydraulic presses, CNC equipment, and automated production lines.

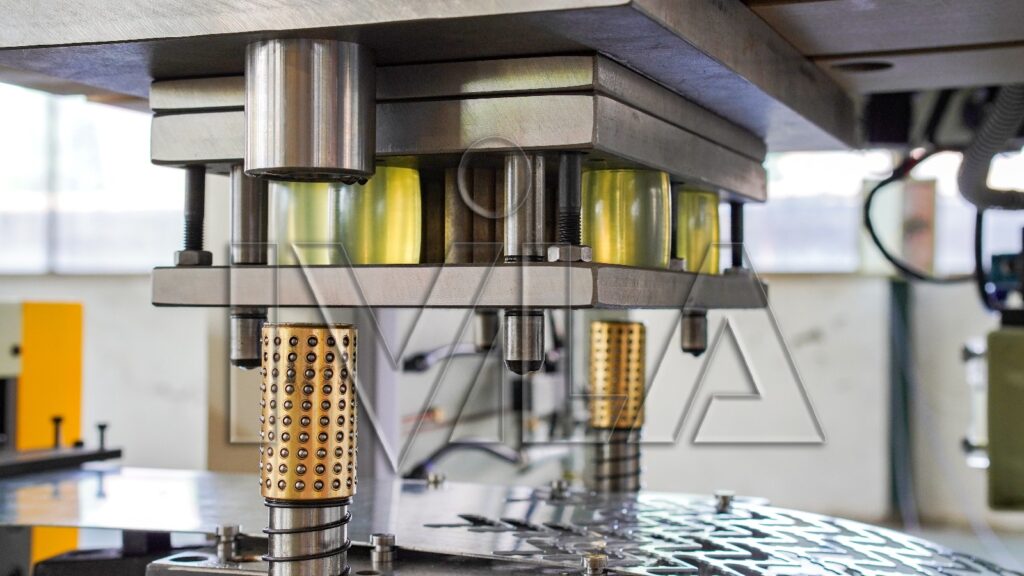

Custom Molds
Custom molds (also called custom dies or tooling) are specially designed forming tools used in mechanical punch presses, hydraulic presses, and stamping machines. They are manufactured according to specific product drawings, material requirements, and production processes to achieve precise cutting, punching, bending, or forming results.

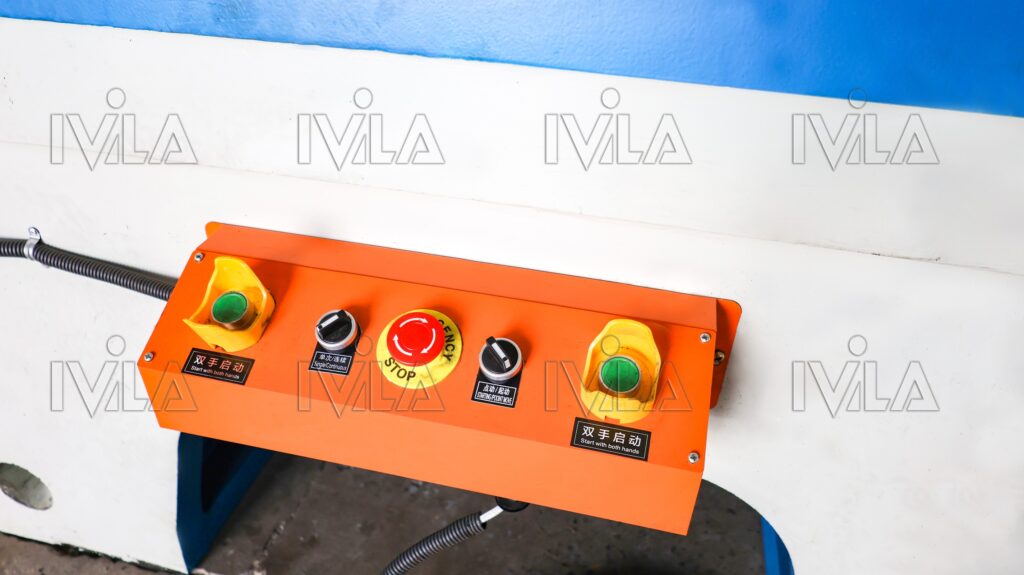

Push-button Switch
Push-Button Switch in Industrial Machines (Press Control Systems) A push-button switch is a basic electrical control device used in mechanical punch presses, hydraulic presses, and industrial automation equipment. It allows the operator to control machine functions such as start, stop, jog, and emergency shutdown through simple manual pressing.

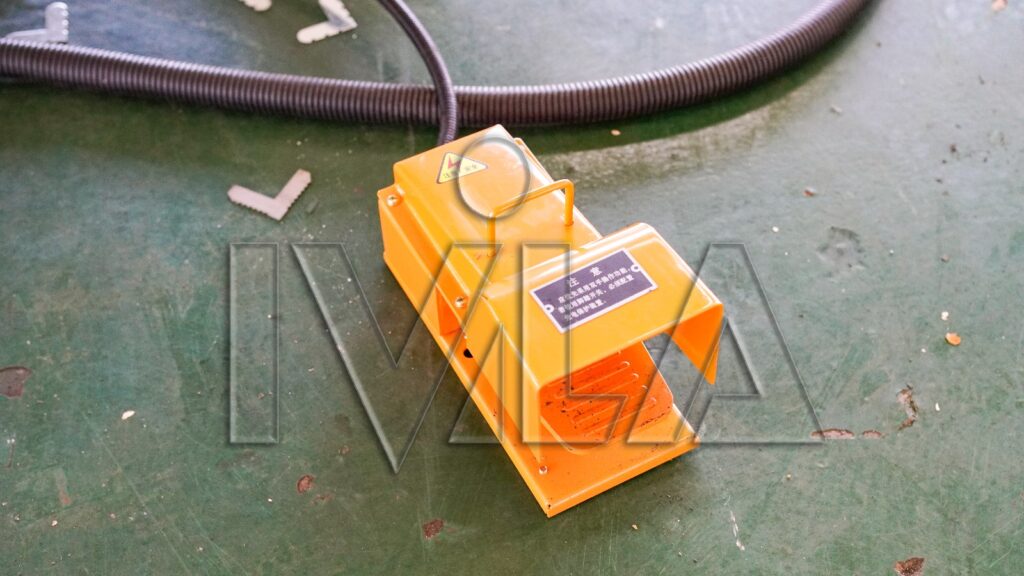

Foot Switch
A foot switch is an operator control device used in mechanical punch presses, hydraulic presses, and other industrial machines. It allows the operator to start or control machine operation using foot pressure, freeing both hands for handling workpieces or positioning materials.
Technical Parameters
| Machine Tool Model | 25T | 40 | 63T | 80T | 100T | 125T | |
| Nominal Force (K) | 250 | 400 | 630 | 800 | 1000 | 1250 | |
| Stroke Adjustment (mm) | 10-100 | 10-120 | 10-120 | 10-140 | 10-150 | 10-150 | |
| Maximum Slider Stroke (mm) | 120 | 120 | 130 | 140 | 180 | 180 | |
| Maximum Opening Height (mm) | 220 | 240 | 250 | 280 | 330 | 330 | |
| Die Mounting Height (mm) | 100-200 | 140-200 | 160-270 | 180-280 | 200-320 | 220-320 | |
| Stroke Frequency (1/min) | 40-70 | 30-65 | 30-60 | 30-60 | 20-50 | 20-50 | |
| Maximum Pressure (MPa) | 25 | 25 | 25 | 25 | 25 | 25 | |
| Rapid Descent Speed (m/s) | 225 | 230 | 220 | 220 | 210 | 250 | |
| Working Speed (m/s) | 10 | 10 | 8 | 8 | 8 | 8 | |
| Return Speed (m/s) | 180 | 180 | 180 | 160 | 160 | 150 | |
| Workbench | Left-Right mm | 500 | 590 | 650 | 760 | 820 | 840 |
| Front-Back mm | 390 | 440 | 450 | 500 | 580 | 580 | |
| Blanking Hole mm | 100 | 150 | 150 | 180 | 180 | 200 | |
| Throat Depth (mm) | 200 | 250 | 260 | 260 | 300 | 310 | |
| Slider | Front-to-Back mm | 220 | 280 | 320 | 560 | 400 | 400 |
| Mold Hole Shank mm | 40 | 50 | 50 | 60 | 60 | 60 | |
| Left-to-Right mm | 330 | 440 | 320 | 350 | 610 | 610 | |
| Workbench height from the floor (mm) | 500 | 550 | 550 | 600 | 660 | 680 | |
| Motor power (kV) | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 | |
| Machine Dimensions | Width (mm) | 1100 | 1100 | 1250 | 1370 | 1350 | 1600 |
| Depth (mm) | 1150 | 1260 | 1450 | 1630 | 1630 | 1850 | |
| Height (mm) | 1800 | 1960 | 2270 | 2500 | 2600 | 3400 | |
