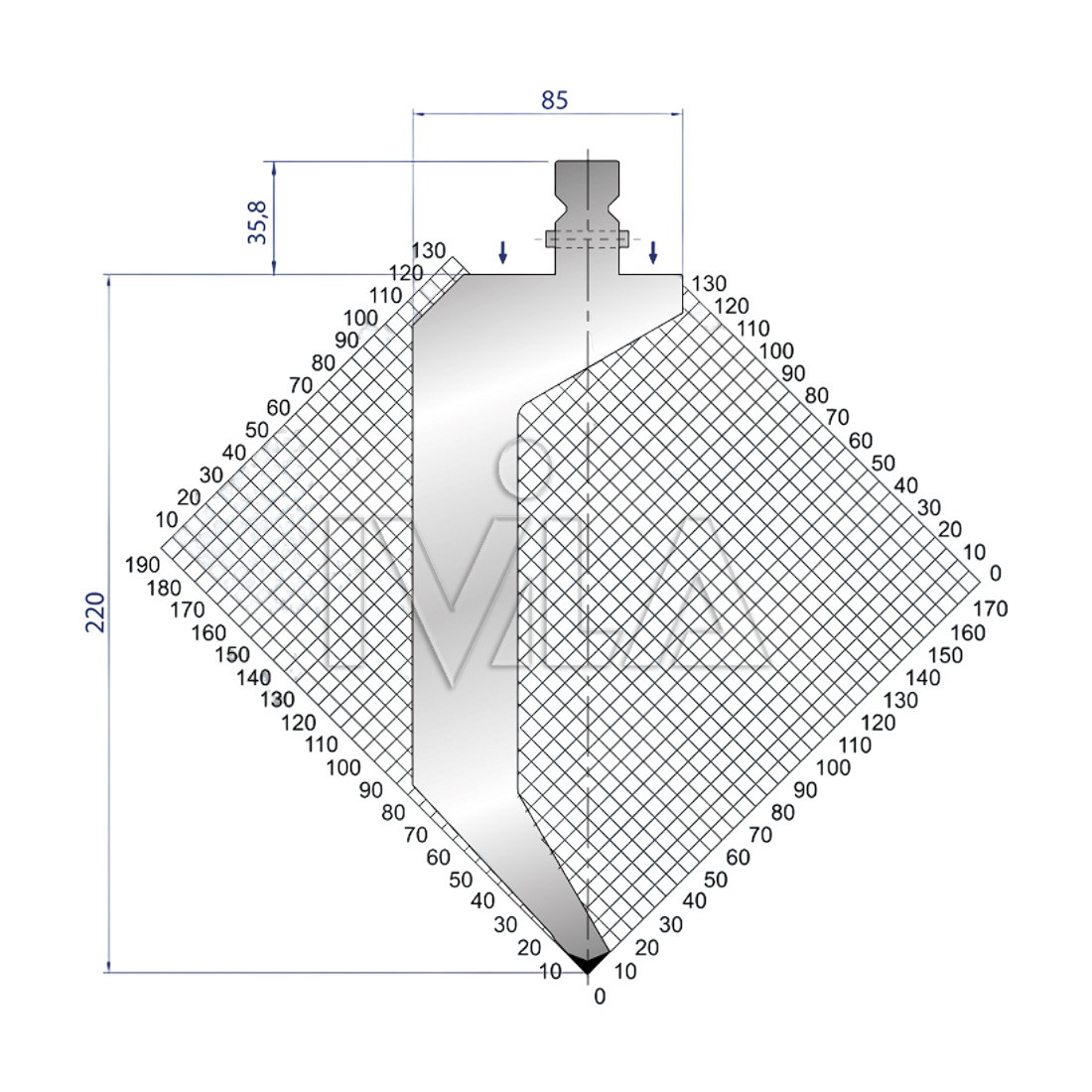

1294 WILA-TRUMPF Gooseneck Punch
| Brand | IVILA |
|---|---|
| Tooling Type | Gooseneck Punch |
| Tooling System | WILA-TRUMPF |
| Code | 1294 |
| Angle | 86° |
| Radius | 1 |
| Height | 220mm |
| Load | 85T/Mt |
Description
Related products
3123 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3123 |
| Angle | 86° |
| Radius | 0.5 |
| V Opening | 6mm |
| Height | 120mm |
| Load | 100T/Mt |
3131 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3131 |
| Angle | 86° |
| Radius | 3 |
| V Opening | 40mm |
| Height | 120mm |
| Load | 100T/Mt |
3140 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3140 |
| Angle | 30° |
| Radius | 5 |
| V Opening | 16mm |
| Height | 120mm |
| Load | 45T/Mt |
3143 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3143 |
| Angle | 86° |
| Radius | 0.5 |
| V Opening | 6mm |
| Height | 170mm |
| Load | 100T/Mt |
