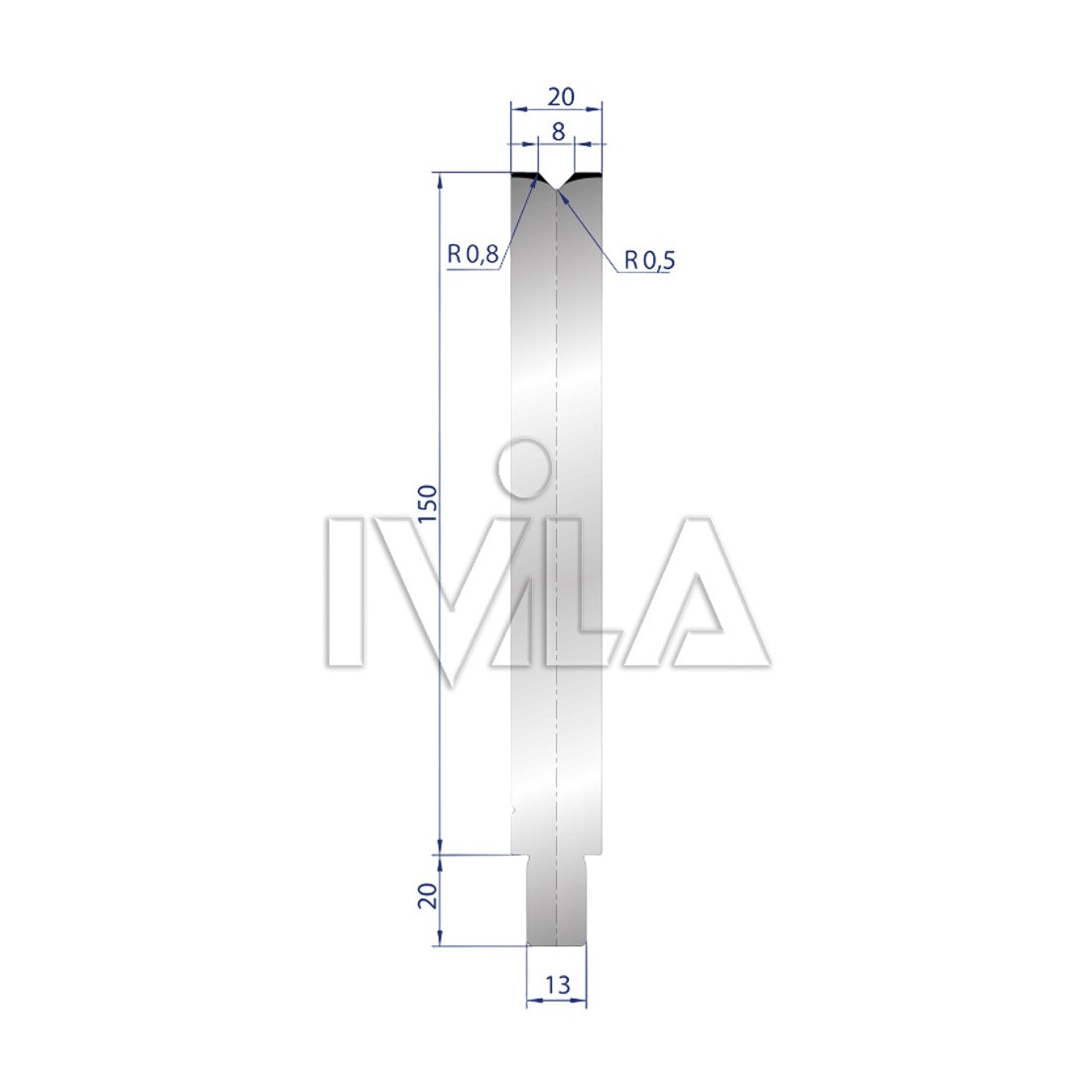

3144 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3144 |
| Angle | 86° |
| Radius | 0.5 |
| V Opening | 8mm |
| Height | 170mm |
| Load | 100T/Mt |
