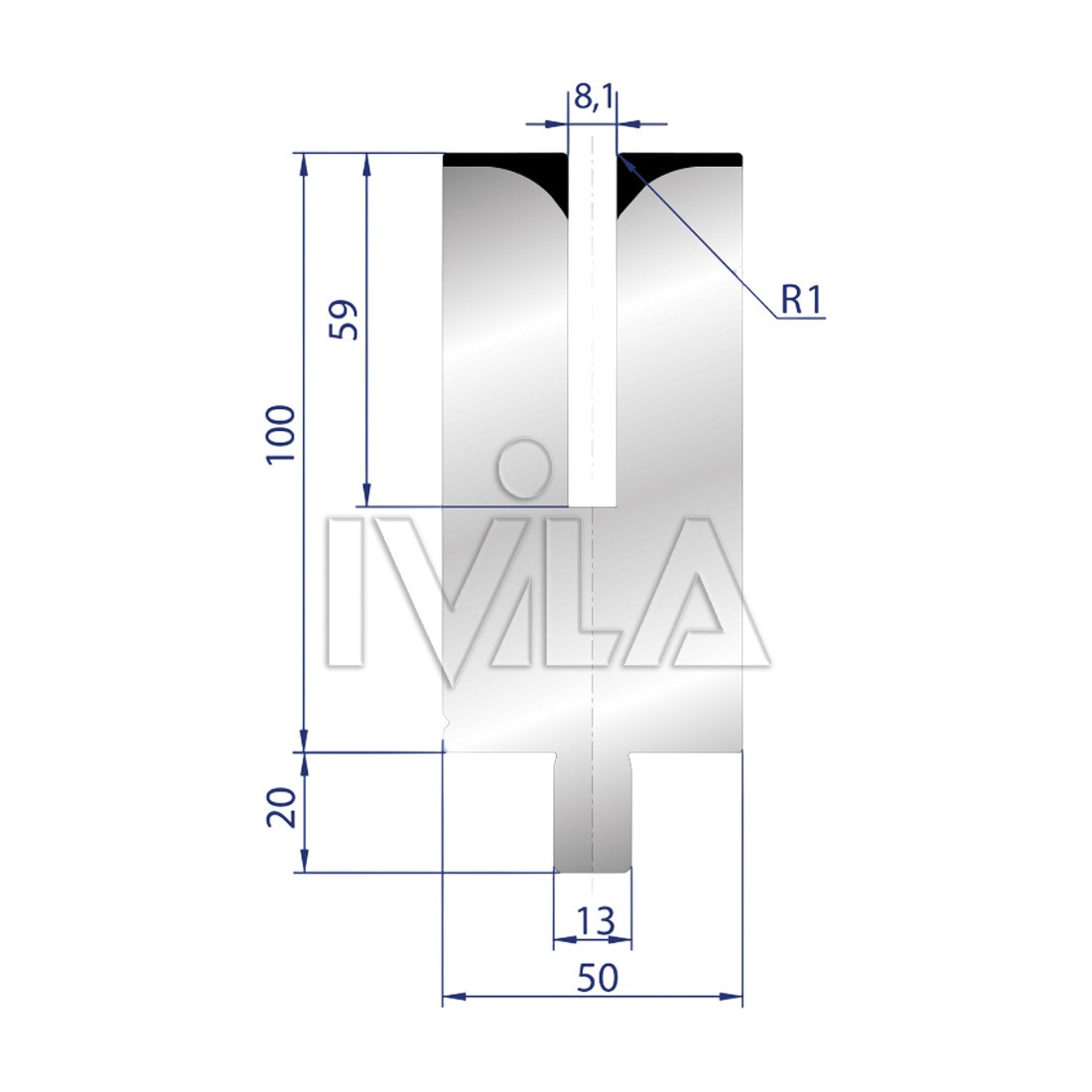

3157 WILA-TRUMPF Hemming Die
| Brand | IVILA |
|---|---|
| Tooling Type | Hemming Die |
| Tooling System | WILA-TRUMPF |
| Code | 3157 |
| Sheet Thickness | Maximum 1.2mm |
| V Opening | 8.1mm |
| Height | 100mm |
| Load | 50T/Mt |
Description
Related products
3127 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3127 |
| Angle | 86° |
| Radius | 0.5 |
| V Opening | 16mm |
| Height | 120mm |
| Load | 100T/Mt |
3137 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3137 |
| Angle | 30° |
| Radius | 2 |
| V Opening | 8mm |
| Height | 120mm |
| Load | 40T/Mt |
3140 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3140 |
| Angle | 30° |
| Radius | 5 |
| V Opening | 16mm |
| Height | 120mm |
| Load | 45T/Mt |
3147 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3147 |
| Angle | 86° |
| Radius | 0.5 |
| V Opening | 16mm |
| Height | 170mm |
| Load | 100T/Mt |
