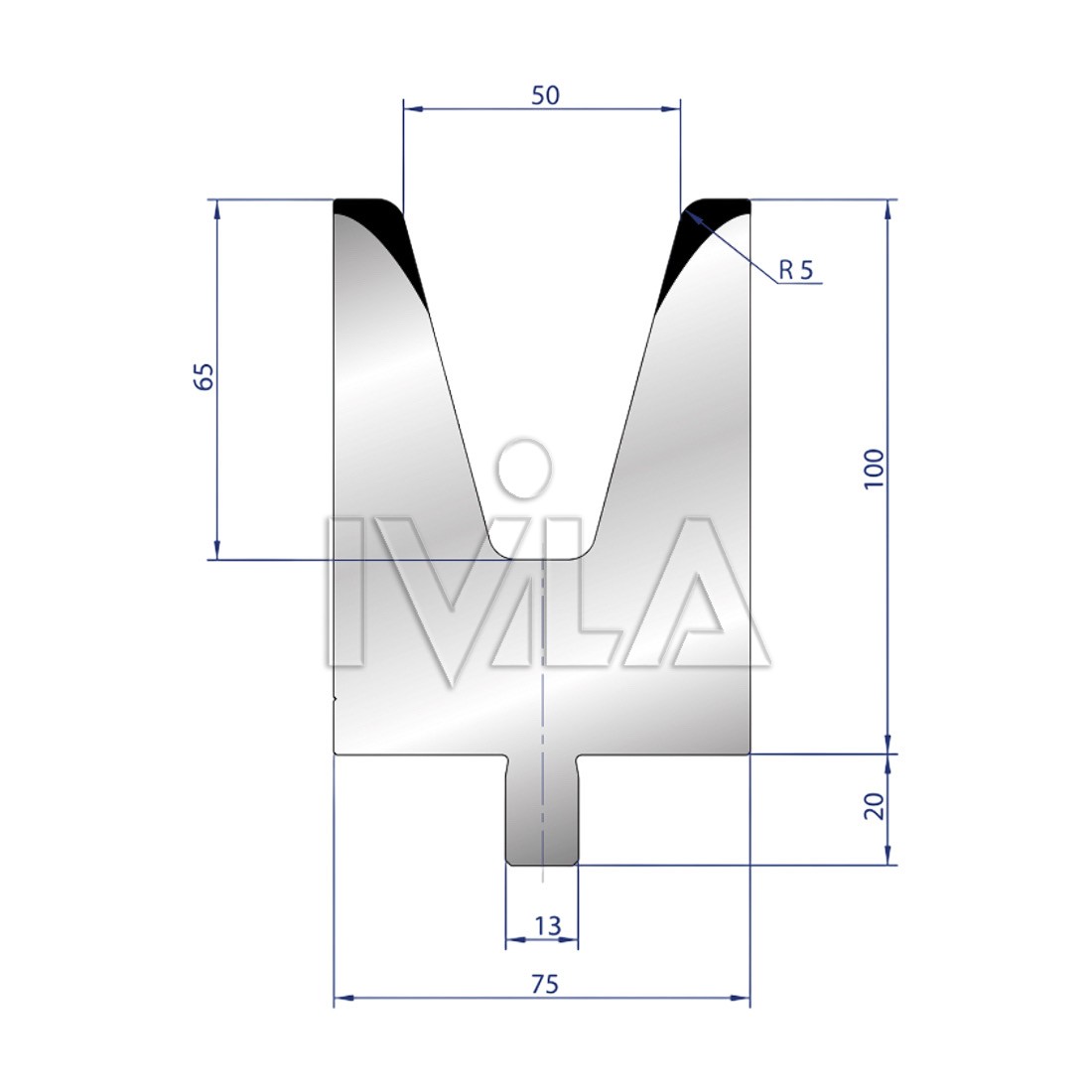

3235 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3235 |
| Angle | 30° |
| Radius | 13 |
| V Opening | 50mm |
| Height | 120mm |
| Load | 100T/Mt |
Description
Related products
3131 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3131 |
| Angle | 86° |
| Radius | 3 |
| V Opening | 40mm |
| Height | 120mm |
| Load | 100T/Mt |
3133 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3133 |
| Angle | 80° |
| Radius | 5 |
| V Opening | 60mm |
| Height | 120mm |
| Load | 100T/Mt |
3136 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3136 |
| Angle | 30° |
| Radius | 1 |
| V Opening | 6mm |
| Height | 120mm |
| Load | 50T/Mt |
3141 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3141 |
| Angle | 30° |
| Radius | 5 |
| V Opening | 20mm |
| Height | 120mm |
| Load | 50T/Mt |
