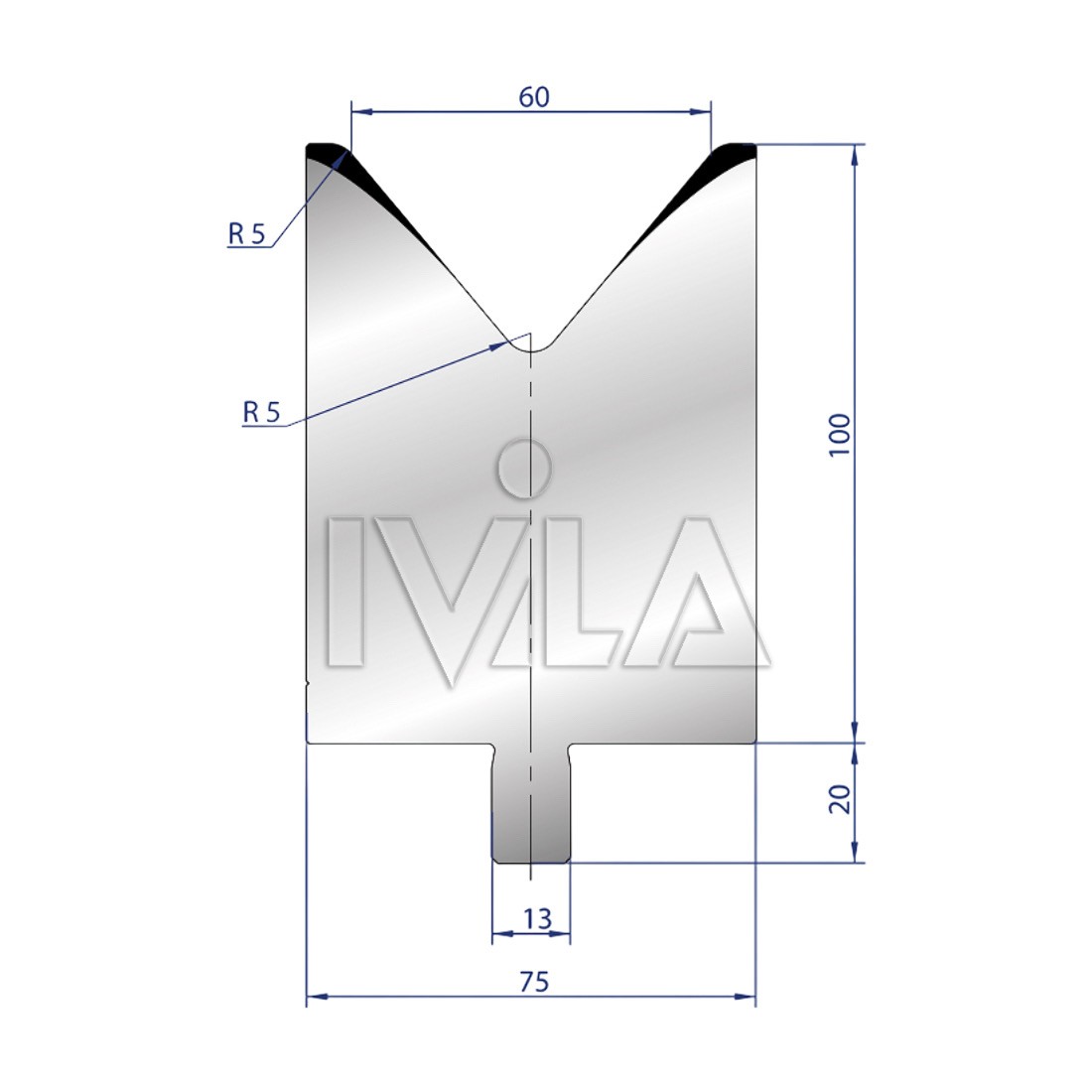

3219 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3219 |
| Angle | 80° |
| Radius | 5 |
| V Opening | 60mm |
| Height | 120mm |
| Load | 150T/Mt |
