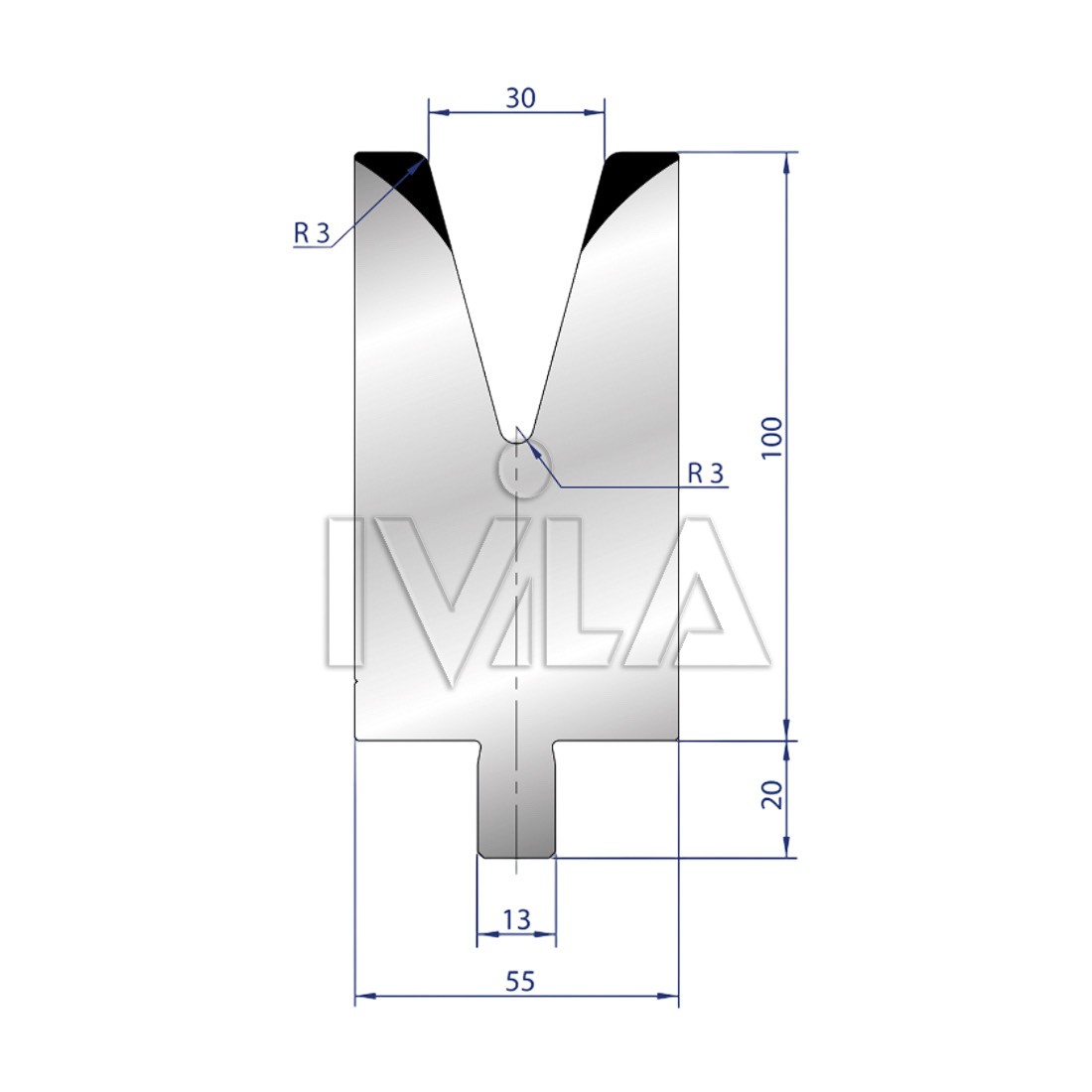

3213 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3213 |
| Angle | 30° |
| Radius | 3 |
| V Opening | 30mm |
| Height | 120mm |
| Load | 85T/Mt |
Description
Related products
3134 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3134 |
| Angle | 80° |
| Radius | 8 |
| V Opening | 80mm |
| Height | 120mm |
| Load | 100T/Mt |
3135 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3135 |
| Angle | 80° |
| Radius | 10 |
| V Opening | 100mm |
| Height | 120mm |
| Load | 100T/Mt |
3136 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3136 |
| Angle | 30° |
| Radius | 1 |
| V Opening | 6mm |
| Height | 120mm |
| Load | 50T/Mt |
3137 WILA-TRUMPF 1V Die
| Brand | IVILA |
|---|---|
| Tooling Type | 1V Die |
| Tooling System | WILA-TRUMPF |
| Code | 3137 |
| Angle | 30° |
| Radius | 2 |
| V Opening | 8mm |
| Height | 120mm |
| Load | 40T/Mt |
